ETCR ETCR3670 Transformer DC Resistance Tester 24V/10A AC/DC Power 5" Touch Screen Built-in Printer Transformer Windings Insulation Resistance Meter 1.0uΩ-50.00kΩ

R 24,436

Availability: Currently in Stock

Delivery: 10-20 working days

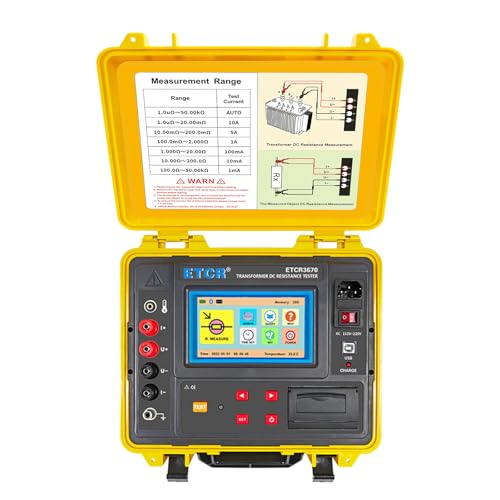

ETCR ETCR3670 Transformer DC Resistance Tester 24V/10A AC/DC Power 5" Touch Screen Built-in Printer Transformer Windings Insulation Resistance Meter 1.0uΩ-50.00kΩ
- ETCR3670 Transformer Winding DC Resistance Meter is used for fast measurement of various transformer windings DC resistance and conductor DC resistance measurement.
- The tester has two power supply modes: AC 110V-240V and built-in large capacity lithium battery, which can meet the requirement in various sites.
- Two measurement modes: automatic measurement mode: the test current can be automatically selected according to the load; Manual measurement mode: 7 gears test current can be choose.
- The maximum output voltage is 24V, the maximum test current is 10A, and the test speed is fast, which can be applied to various transformers and other resistance measurements.
- Equip with 5-inch true-color LCD touch screen, which is dual-purpose for measuring and operating with touch screen/press buttons. With built in printer, and USB interface.
- With automatic discharge function, with 75° conversion resistance function, which can compensates for the material temperature of the tested object.
- Resistance measurement range: 1.0uΩ-50.00kΩ
Country USA
Brand ETCR
Manufacturer HKNDT INSTRUMENTS
ItemPartNumber ETCR3670KKIDDNSS
Model ETCR3670
Color Yellow & Grey
UnitCount 1
ReleaseDate 0000-00-00
