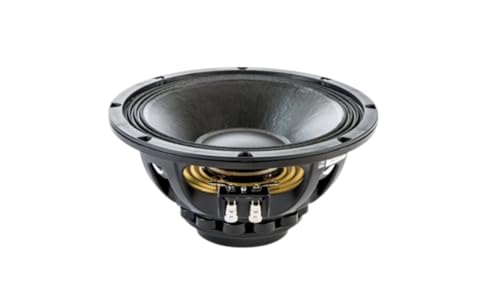

Eighteen Sound 10NW750-8 Neo Mid Bass 10-inch State of The Art

Eighteen Sound 10NW750-8 Neo Mid Bass 10-inch State of The Art Low Frequency Woofer with Neodymium Magnet Structure
- "18 Sound’s 10NW750 neodymium low frequency transducer is a state-of-the-art 10-inch woofer that combines excellent linearity with high power handling capabilities (900 W) and reduced power compression. The external neodymium magnet assembly assures high flux concentration and excellent heat exchange. The 75mm (3 in) inside outside aluminum voice coil employs Interleaved Sandwich Voice coil (ISV) technology. "
- A sophisticated distortion reduction system has been implemented using a demodulating ring for flux modulation cancellation related to voice coil excursion, together with a copper ring for the reduction of intermodulation distortion. The cone is treated against extremely aggressive environment conditions. The compact size makes the 10NW750 an ideal choice for high performance line arrays and compact two-way systems.
- * 94 dB SPL 1W@1m average sensitivity || * 900 W program power handling || * 75 mm (3 in) Interleaved Sandwich Aluminum Voice Coil (ISV) || * External Neodymium magnet assembly || * Single Demodulating Ring (SDR) for lower distortion and maximum sound clarity || * Weather protected cone and coated plates || * Suitable for high performance line arrays and compact two-way systems || 18 Sound's 10NW750 neodymium low frequency transducer is a state-of-the-art 10-inch woofer
- "The external neodymium magnet assembly assures high flux concentration and excellent heat exchange. || The 75mm (3 in) inside outside aluminum voice coil employs Interleaved Sandwich Voice coil (ISV) technology. || * A sophisticated distortion reduction system has been implemented using a demodulating ring for flux modulation cancellation related to voice coil excursion, together with a copper ring for the reduction of intermodulation distortion. ||
- MOUNTING AND SHIPPING INFO || || Overall Diameter :: 260 mm (10.24 in) || || Bolt Circle Diameter :: 244 mm (9.61 in) || || Baffle Cutout Diameter :: 232.0 mm (9.13 in) || || Depth :: 130 mm (5.12 in) || || Flange and Gasket Thickness :: 11 mm (0.43 in) || || Net Weight :: 3.8 kg (8.38 lb) || || Shipping Weight :: 4.3 kg (9.48 lb) || || Shipping Box :: 275x275x164 mm (10.83x10.83x6.46 in)
Country USA
Brand 18 Sound
Manufacturer Eighteen Sound
Binding Electronics
ItemPartNumber 10NW750-8
Model 10NW750-8
Color Black
ReleaseDate 2023-11-20
UnitCount 1
EANs 8054752260603

Country	USA
Brand	18 Sound
Manufacturer	Eighteen Sound
Binding	Electronics
ItemPartNumber	10NW750-8
Model	10NW750-8
Color	Black
ReleaseDate	2023-11-20
UnitCount	1
EANs	8054752260603

Eighteen Sound 10NW750-8 Neo Mid Bass 10-inch State of The Art Low Frequency Woofer with Neodymium Magnet Structure
