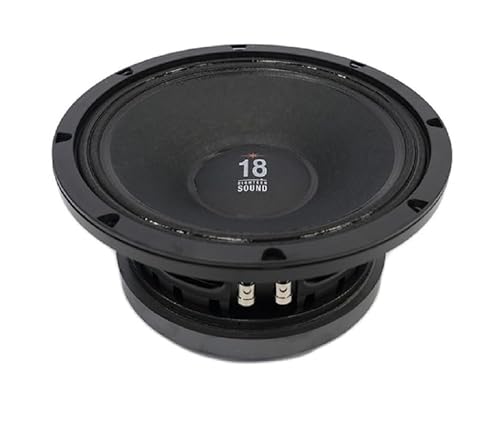

Eighteen Sound 18 10MB777-8 10-inch Mid Bass Woofer Midbass

Eighteen Sound 18 10MB777-8 10-inch Mid Bass Woofer Midbass Driver 8 Ohms Weather Protected Cone and Plates for Outdoor Usage 75 mm Interleaved Sandwich Voice Coil
- "HIGHLIGHTS : * 98 dB SPL 1W / 1m average sensitivity || * 75 mm (3 in) Interleaved Sandwich Voice coil m (ISV) || * 450 W AES power handling || * Weather protected cone and plates for outdoor usage || * Excellent transient response || * Improved heat dissipation via unique basket design || * Ideal for compact two way and multiway systems || "
- MOUNTING AND SHIPPING INFO || || Overall Diameter :: 260 mm (10.24 in) || || Bolt Circle Diameter :: 244 mm (9.61 in) || || Baffle Cutout Diameter :: 232.0 mm (9.13 in) || || Depth :: 127 mm (5.0 in) || || Flange and Gasket Thickness :: 14 mm (0.55 in) || || Net Weight :: 7.2 kg ( lb) || || Shipping Weight :: 7.9 kg (17.42 lb) || || Shipping Box :: 275 x 275 x 164 mm (10.83x10.83x6.46 in)
- The 10MB777 mid-bass transducer represents a development of the 10M600 midrange, combining excellent linearity with high efficiency and high power handling capabilities. The 10MB777 is primarily intended for use as a midbass driver in extremely compact 2-way reflex enclosures between 10 and 40 lt. Its curvilinear paper cone is formed using a special high strength wood pulp, designed to achieve the best possible rigidity and stiffness.
- An exclusive treatment is also applied to the cone to increase its water repellent properties. The 75 mm state-of-the-art voice coil is similar to those fitted to our top-of-the-range 18-in and 15-in models but it is wound with aluminum wire. The coil also employs our Interleaved Sandwich Voice coil (ISV) technology. A high strength fiberglas former carries windings on both the outer and inner surfaces to achieve a mass balanced coil.
- The voice coil cooling is achieved using airways between the chassis back plate and the face plate of the magnet which allow heated air from the voice coil and gap to be channeled away and dissipated by the chassis basket. This technology is a result of 3D CAD resource application by our engineers. The top and back plates of the magnet assembly have been designed to optimise flux density and BL factor in the air gap also using our in-house FEA CAD facility.
Country USA
Brand 18 Sound
Manufacturer Eighteen Sound
Binding Electronics
ItemPartNumber 10MB777-8
Model 10MB777-8
Color Black
ReleaseDate 2023-11-17
UnitCount 1
EANs 8054752260627

Country	USA
Brand	18 Sound
Manufacturer	Eighteen Sound
Binding	Electronics
ItemPartNumber	10MB777-8
Model	10MB777-8
Color	Black
ReleaseDate	2023-11-17
UnitCount	1
EANs	8054752260627

Eighteen Sound 18 10MB777-8 10-inch Mid Bass Woofer Midbass Driver 8 Ohms Weather Protected Cone and Plates for Outdoor Usage 75 mm Interleaved Sandwich Voice Coil
