ElecGear Hall Joystick and Desoldering Heating Plate Kit for

ElecGear Hall Joystick and Desoldering Heating Plate Kit for Controllers – 4X Hall Effect Control Stick + 8X Additional Sensor + VCC Tester + Replacement Repair Mod Tool
- [Hall Joysticks and Additional Sensors] – 4x Hall effect stick replacement for PS4, PS5, Xbox and most 3rd party controllers with normal analog or hall control stick inside (by ALPS, FU and others). Reassemble the stick assembly with 8x additional sensors and magnets to adapt it to your specific controller. A dedicated Vcc Tester distinguishes which pin is Vcc/Gnd. (🔺Noted: Make sure your controller comes with normal ✅UniA stick.)
- [Heating Plate included] – A copper heating plate melts all the solder joints simultaneously simply with a soldering iron. Tin the wire, cut it to form a sharp tip, puncture the tip into the small hole to suck the solder in the small holes. Multi gauge braid wire performs better than solder wick. PCB clamps which helps to support the PCB on the workbench. 🔺Be noticed: Do not position the clamps close to hot joystick, or it will melt
- [Calibration Strategy] – The center can be adjusted with the included tool. The outer range of these hall sticks is slightly larger than analog sticks. We do not suggest calibrating its outer range with calibration App though we mentioned it on the installation guide. You can manually increase/decrease the outer range with 8% O-ring or Teflon tape. (🔺Noted: To finely control the calibration, plz go to another series of kit with MCU PCB.)
- [Compatibility and Reminder] – 1. 🔺Study the images and description for compatible/incompatible sticks and controllers. 2. 🔺External magnets may interfere with the hall stick, for example, the LT bumper button of controllers in Xbox layout. Do not buy if you concern this, and take a look at B0CYBWQWTB for kit with MCU control for Xbox. 3. 🔺Serious soldering skill and devices required to de-solder the old stick off PCB

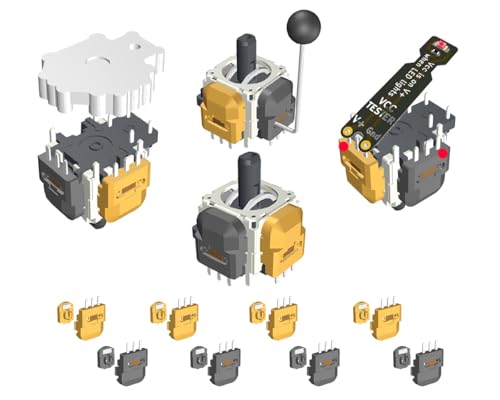

- [What’s in the box HL-JF] – 4x Hall Joysticks, 8x Additional Hall Sensors and Magnets, 1x Vcc Tester, 1x Heating Plate, 1x Center Adjustment Pin, 1x 8% O-ring, 1x Teflon Tape. (🔺Make sure your iron is more than 60Watt and with a big tip. Controllers, Teardown screwdriver tools, Soldering Iron, other soldering tools and materials are required, however NOT included.)
Country USA
Brand ElecGear
Manufacturer ElecGear
Model HL-JF
ReleaseDate 0000-00-00

Country	USA
Brand	ElecGear
Manufacturer	ElecGear
Model	HL-JF
ReleaseDate	0000-00-00

ElecGear Hall Joystick and Desoldering Heating Plate Kit for Controllers – 4X Hall Effect Control Stick + 8X Additional Sensor + VCC Tester + Replacement Repair Mod Tool
