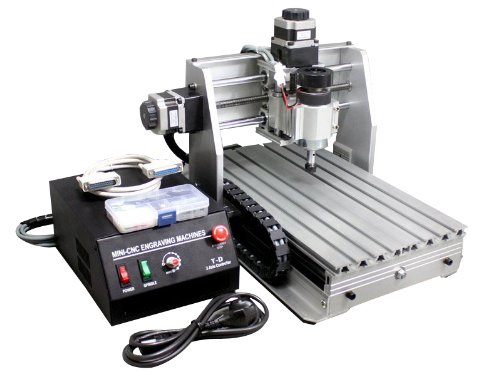

F ree Shipping ! GTSUN CNC 3020T-DJ Carving Machine / Engraving Machine Milling Drilling Cutting Router Engraver 3th AXIS

CNC 3020T-DJ Carving Machine / Engraving Machine Milling Drilling Cutting Router Engraver 3th AXIS
(more powerful brand new 230W DC spindle motor and controller box)
parameters:
Effective working travel : 300(X)mm*200(Y)mm*45(Z)mm
Shape dimension : 520x400*370mm
Max.workpiece dimension : 300mm*200mm<60mm
Work table dimension : 440mm*240mm
Frame materials : aluminum alloy 6063 and 6061
Leadscrew : 1204 double thread Trapezoidal screws
Driving units
X axis : 1204 trapezoidal screws
Y axis : 1204 trapezoidal screws
Z axis : 1204 trapezoidal screws
Sliding units
X axis : Dia.16mm chrome plate shafts
Y axis : Dia.16mm chrome plate shafts
Z axis : Dia.12mm chrome plate shafts
Stepping motor type: 57 two-phase 1.8A
Spindle motor : 230W DC spindle motor
Principal axis collet : ER11/3.175 mm
Repeat accuracy : 0.05mm
Spindle precision : radial beat acuities 0.03 mm
Control unit : triaxial one-piece drive + ring variable power + PWM speed
Carving Instructions :G code/TAB files/nc file/NCC files
Communication interface :through parallel connection with computer
Software environment : Windows xp
Maximum speed : 0-4000mm/min
Carving speed : 0-2500mm/min (different materials differ)
Machine weight : 21KG
Control box parameters:
Operating Voltage ï¼šAC110V/AC220V,50HZ/60HZ (when you buy it ,pls leave us your optional)
Control unit ï¼šToroidal transformer + PWM power supply module + TB6560 3axis drive board
Computer connectionï¼š on board palrallel port
Command code ï¼šG code
Acceptable software ï¼š Mach3,EMC2
Protectionï¼š Emergency stop button
