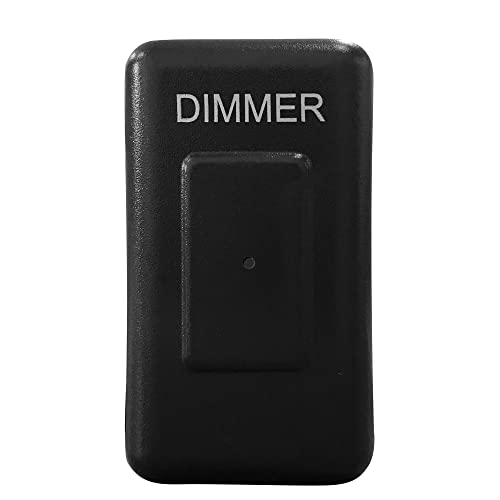

Facon 12Volt Touch Dimmer Switch, 50Watts Max, Use with 12V

Facon 12Volt Touch Dimmer Switch, 50Watts Max, Use with 12V LED Lights, Incandescent and Halogen Bulbs for RV, Camper, Marine, and Strip Lights
- 【Strong compatibility】This PWM dimmer switch compatible to use with LED Lights, Incandescent , Halogen bulbs and LED Strip Lights with 12Volts DC power supply
- 【Full Range of Brightness Control & Special Design】Full range of brightness control: Hold - adjust the brightness from Dim to Bright; Touch - turn On & Off the light fixture. The indicator light will be turn "ON" only if you turn on the light fixture. It will stay "OFF" when you turn off the light fixture to save electric bill.
- 【High Quality GUARANTEE】Rate up to 50 Watts to use with single or multi-lights. Passed US Standard cETL Certification for your safety. We own the patent and certificate.
- 【Easy Installation】Installed in the standard 4-wires configuration: first connect the IN+ & IN- to DC 12 Volts power supply; then connect the OUT+ & OUT- to your lamp.
- 【Wiring Instruction】Please Note - Many RV light switches only interrupt the 12V positive wire. This dimmer requires you to connect the negative wires also (positive in, positive out, negative in, negative out, as labeled on the wires). If you can’t locate the negative wire going to your lights, this dimmer won’t work
This is a 12V DC Single Touch Dimmer.
Optional Single and Double Switch
Up to 40 Watts to Used with Single or Multi-lights
Comment Use with LED Lights, Incandescent and Halogen bulbs
Touch - On/Off
Hold - Dim/ Bright
FCC Approved Dimmable Driver
Quality warranty: 3 years
Finish: Black
Dimension for Single Dimmer(inch): 2.6 x 1.6 x 0.6
Dimension for Double Dimmer(inch): 3.2 x 2.6 x 0.6

CAUTION
This dimmer is only for 12V DC , 50 watts maximum LED loading
ELECTRICAL CONNECTIONS
Connect white wire(s) with "IN-" mark from the dimmer to the white (neutral) wire of the supply circuit.
Connect black wire(s) with "IN+" mark from the dimmer to the black (live) wire of the supply circuit.
Connect white wire(s) with "OUT-" mark from the dimmer to the white wire(s) of LED lamps.
Connect black wire(s) with "OUT+" mark from the dimmer to the black wire(s) of LED lamps.

At the circle of center of about 3 / 8" round circle area, is the better touching area.
TOUCH INSTRUCTION
A.When the dimmer is connected, theÂ indicator light begins to work, and will be at OFF status.
B. For turning on the light, land a short click on the dimmer pad. For turning off, do it again.
C. For dimming after turning on, keep the finger on touch pad, so the brightness will dim from low to high, or vice versa, and after reaches the highest or lowest brightness, it will start dim again.
For turning off after dimming, leave the finger from touch pad for more than 1 second and touch again.
D. At the OFF status, keep the finger on touch pad, the lights will be dimming from low to high.
E. The dimmer has a memory function. When the light turns on, the brightness will be at the status of the last time when it was turns off.

Country	USA
Brand	Facon
Manufacturer	Genesis Lighting
Binding	Tools & Home Improvement
ItemPartNumber	DIMMERS-B11
Model	DIMMERS-B11
Warranty	1 Year Warranty
Color	Black
Size	Single Dimmer
UnitCount	1
EANs	6938546739921
ReleaseDate	0000-00-00
