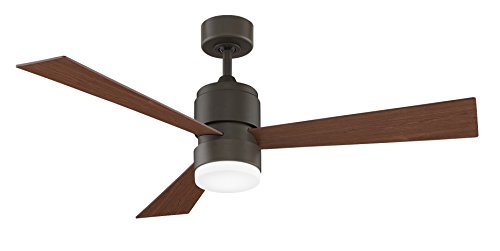

Fanimation Zonix LED - 54 inch - Oil-Rubbed Bronze with Walnut Blades and LED Light Kit with Remote - FP4650OB
Product Description
Fanimation Zonix LED - 54 inch - Oil-Rubbed Bronze with Walnut Blades and LED Light Kit with Remote - FP4650OB
- The contemporary Zonix LED comes included with a dimmable: 16 Watt LED Module, 1350 Lumens, 3000K, and 80 CRI light
- Dimensions: Height Distance from Ceiling to Bottom of Fan Light is 18.5", Canopy Diameter 5.78", Ceiling to Top of Fan Blades 14.43", Total Blade Span Diameter 54"
- Hanging Weight is 17.9. This fan is rated for Damp Locations. Download Installation Details Below.
- Fan comes included with: TR24WH and can be operated by C25 Wall Control
- Three 54 inch Sweep Walnut Composite Painted Blades
Fan must be attached to a securely anchored electrical junction box capable of withstanding a load of at least 50 lbs. ELECTRICAL REQUIREMENTS: Requires a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit. MOTOR SPECS: 153 x 18 motor is designed for optimal performance with this fan. BLADE SETS: A set of three 26? reversible plastic blades is included. CONTROL OPTIONS: TR24WH hand-held remote control with wall mount is included. Push button remote control has 3 fan speeds, infinite light levels and off button. Optional CW1, CW1SW, CW2, CW5 and CWRL4 wall controls and CRL4WH and CRL8TS remote controls with receiver unit are available "sold separately. Instruction s are provided with each control. LIGHTING OPTIONS: One 14-watt LED included. DOWNROD OPTIONS: Fan comes with a 1? dia. x 6? long down rod (DR1-6). Optional down rods available in 12?, 18?, 24?, 36?, 48?, 60? and 72? lengths. A down rod coupler is available for installations requiring a down rod longer than 72?. Fan can be mounted on a sloped ceiling up to 30A Degree.
