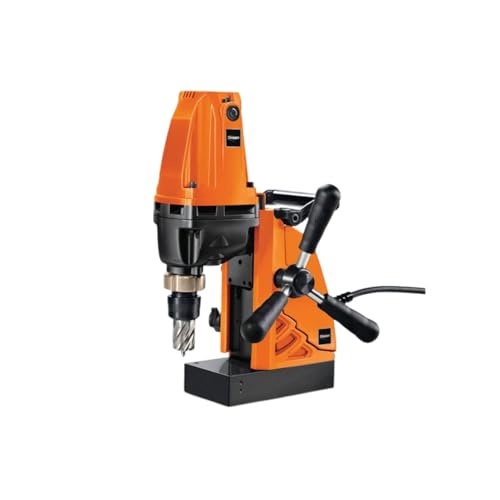

Fein JHM ShortSlugger Magnetic Drill - Portable Endurance

Fein JHM ShortSlugger Magnetic Drill - Portable Endurance Model for Heavy Drilling - 2" Depth, 750W Motor, 680 RPM, 2-9/16" Stroke, Compact Steel Frame - 72725161124
- Compact Drilling Power - Delivers 750W of industrial performance in a lightweight, portable frame ideal for overhead or tight-space drilling with up to 2" depth capacity in steel and other metals.
- High-Torque Performance - Operates at 680 RPM with constant speed under load, ensuring smooth, accurate hole cutting in tough materials such as structural steel, pipe, and sheet metal.
- 2-9/16" Stroke Length - Extended stroke range accommodates a wide variety of applications, allowing the use of longer core bits for deeper hole drilling without sacrificing control.
- Magnetic Base Stability - Features a strong electromagnetic base that securely anchors the drill in position, providing vibration-resistant stability and precision during vertical or horizontal drilling.
- Fein Industrial Quality - Built with a rugged die-cast aluminum housing and German-engineered components, the JHM ShortSlugger is designed for durability, mobility, and all-day professional use.
Jancy Engineering JHM Short Slugger. Extremely compact mag base drilling unit for on-site drilling. The JHM is a small, but powerfull drill that packs an unexpected punch in a compact 22 pound package. With all metal construction and "Smart Magnet" circuitry is a durable and efficient unit. It has through spindle coolant and a multi-position coolant bottle and a patented internal motor cord. Optimum power/weight ratio for working at height. Handwheel position can be changed in order to work in confined spaces. Concealed motor wiring prevents wires from snagging or getting caught in tight spaces. Gravity-fed cooling lubrication. Contact and chip guard. Easy guide adjustment. Right or left hand feed handles. 1-3/16-inches maximum cutter diameter. 2-inches maximum cutter drilling depth. 750 watt power consumption. 430 watt power output. 680 rpm no load speed. 430 rpm load speed. 3/4-inches weldon shank cutter holder. 2-1/2-inches stroke. 1800 pounds magnetic holding force. Magnet foot measures 7-inches by 3-3/4-inches. 13-feet cable with plug. Measures 9.65-inches length by 7.68-inches width. 11.02-inches to 14.17-inches height. Includes (1) case, (1) coolant tank, (1) safety strap, (1) chip hook, (2) centering pins, (1) 5-millimeters hexagon wrench, (1) safety guard.

Country	USA
Brand	Jancy
Manufacturer	Jancy Engineering
Binding	Misc.
ItemPartNumber	72725161124
Model	72725161124
Warranty	One Year Warranty with purchase plus two additional years available with product registration
Color	Black Orange
Size	JME ShortSlugger
UnitCount	1
EANs	4014586700595
ReleaseDate	0000-00-00

Fein JHM ShortSlugger Magnetic Drill - Portable Endurance Model for Heavy Drilling - 2" Depth, 750W Motor, 680 RPM, 2-9/16" Stroke, Compact Steel Frame - 72725161124
