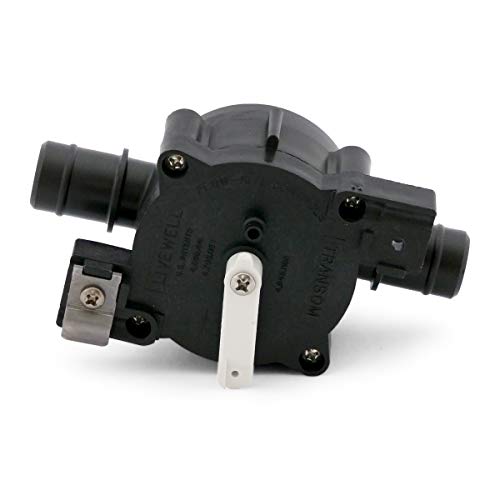

Flow-Rite MV-02-FN01 Control Valve, White Arm, System 2

Flow-Rite MV-02-FN01 Control Valve, White Arm, System 2
- Control Valve, White Arm, System 2, Barbed Connections
- Gives the user the option to have livewell function or empty
- Place the valve in the "AUTO" position and turn on the pump after the first fish is caught.
- Direction Cable: Front Approach (See User guide under Product Guides and documents for explanation)
- Made in the USA
The V2 is our reversible check valve (RCV 75) that allows a single pump to perform the basic livewell functions necessary to keep your catch alive in a passive or automatic manner. By mounting the pump to the valve body, the operator only has to decide whether he wants his livewell functioning or empty. When the first fish is caught, place the valve in the "AUTO" position and turn on the pump. When the boat is off plane the pump will recirculate and aerate the livewell water and simultaneously blend in a portion of fresh lake water. Used livewell water is expelled out the overflow as fresh water enters to prevent any ammonia build up. When the boat is put on plane, the valveâ€™s check flapper will prevent water loss out the drain, and allow the pump to continue its re-circulation duties. Any water lost out the overflow while running on plane is automatically made up when the boat is brought off plane at the next fishing location. All this is accomplished without any operator assistance. To empty, simply turn off the pump and move the valve to the "EMPTY" position for gravity draining.
Country USA
Brand Flow-Rite
Manufacturer Flow-Rite
Binding Automotive
ItemPartNumber MV02FN01
Model MV-02-FN01
Color Black
Size Multi-Port
UPCs 784176000698
EANs 0784176000698
ReleaseDate 0000-00-00

Country	USA
Brand	Flow-Rite
Manufacturer	Flow-Rite
Binding	Automotive
ItemPartNumber	MV02FN01
Model	MV-02-FN01
Color	Black
Size	Multi-Port
UPCs	784176000698
EANs	0784176000698
ReleaseDate	0000-00-00

Flow-Rite MV-02-FN01 Control Valve, White Arm, System 2
