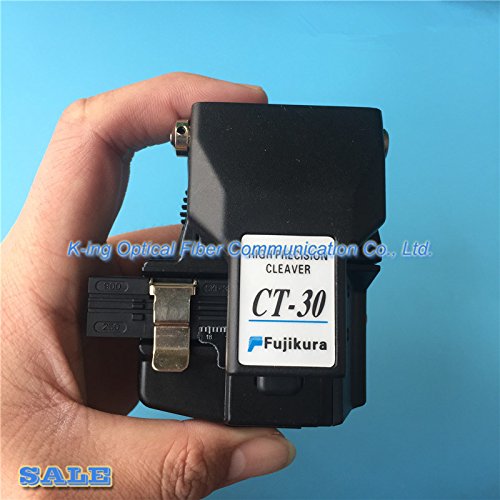

Fujikura Fiber cleaver CT-30 High Precision Cleaver with case Optical fiber cutting knife CT30A CT-30A Fiber Cleaver
Sold Out / Out of Stock
Fujikura Fiber cleaver CT-30 High Precision Cleaver with case Optical fiber cutting knife CT30A CT-30A Fiber Cleaver
Features 1. Application: Single Fibers: 250μ M to 900μ M coating, 125μ M cladding 2. Fiber Handling System: AD-30A Adapter Plate 3. Cleave Length: 900μ M: 10mm to 20mm, 250μ M: 6mm to 20mm 4. Dimensions (W x D x H) 69mm x 82mm x 41mm (2.7" x 3.2" x 1.6") 5. Weight 180g (0.4 lbs) 6. Blade lifetime 48, 000 fiber cleaves (4000 12-fiber cleaves) Providing typical cleave angles of 0.5 degrees, the CT-30A is simple to use and provides consistantly good results. The blade has 16 positions which allows 16,000 operations before replacement. Designed for excellent portability, the CT-30A is equally at home in a splicing van or in a bucket truck and is ideal for FTTx applications. The 16-position blade yields 48,000 single-fiber cleaves, or 4,000 12-fiber ribbon cleaves before requiring replacement, and the built-in scrap collector conveniently stores fiber shards until they can be safely discarded. The CT-30A Cleaver is packaged with three scrap collection options that allow the user to tailor it to their cleaving preferences. The CT30A is delivered with the SC-01 Side Cover installed for users that prefer not to use an automated scrap collection system. For those that prefer an automated scrap collection system, the FC-02 Fiber Collector and two scrap box options are included. The FDB-02 Scrap Box is a smaller bin for users seeking a compact profile. The FDB-03 Scrap Box is a larger bin with sweeping brush and static resistant surfaces for those users seeking to maximize scrap capacity. All scrap options are easily configured by the user.
