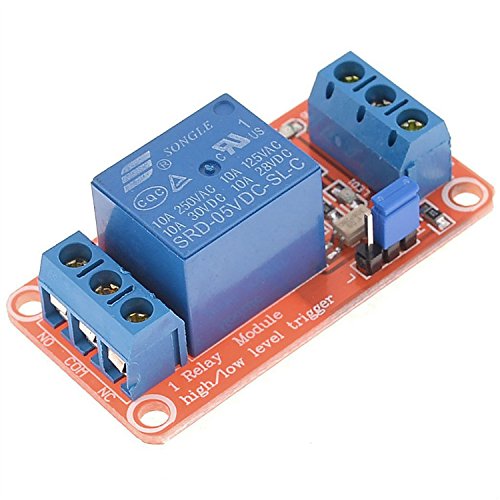

GEREE 1 Channel Optocoupler High/Low Level Relay Module 5V DC

GEREE 1 Channel Optocoupler High/Low Level Relay Module 5V DC for ARM DSP AVR
- GEREE 5V DC Relay Module warranty--30-Day Money Back Guarantee -- 12 Month Replacement Warranty -- Lifetime Support Guarantee
- The module uses genuine quality relay, normally open interfaces , Maximum load: AC 250V/10A, DC 30V/10A.
- Using SMD optocoupler isolation, driving ability, stable performance; trigger current 5mA.
- The module Operating voltage 5V.
- The module can be high or low by a jumper setting trigger.
Product description:

Module description:
1. the module uses genuine quality relay, normally open interfaces Maximum load: AC 250V/10A, DC 30V/10A;
2. using SMD optocoupler isolation, driving ability, stable performance; trigger current 5mA;
3. the module Operating voltage 5V;
4. the module can be high or low by a jumper setting trigger;
5. fault-tolerant design, even if the control line is broken, the relay will not operate;
6. the power indicator (green), the relay status indicator (red)
7. the interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient
8. module size: 50mm*26mm*18.5mm (L*W*H)
Module interface:
1. DC+: positive power supply (VCC)
2. DC-: negative power supply (GND)
3. IN: can be high or low level control relay
Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface
High and low level trigger options:
It is low level trigger when jumper connect to LOW pin
It is high level trigger when jumper connect to HIGH pin

Package:
1*5V 1CH relay module
