GM CLIMBING Chest Ascender Abdominal Vertical Rope Access

GM CLIMBING Chest Ascender Abdominal Vertical Rope Access Arborist SRT Tree Climbing (Pack of 2)

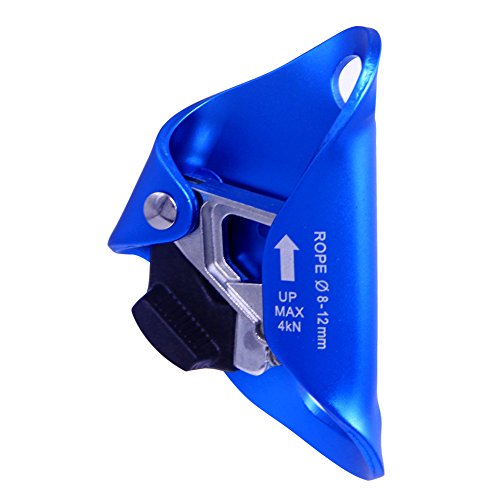

GM CLIMBING Chest Abdominal Ascender

Specification
Material: Aluminum Alloy
UP Maximum Strength: 4kN / 890lb
Dimension: 4.57x2.95inch / 116x75mm (HxW)
Rope Compatibility Dia.: 1/3~1/2inch (8~12mm)
Weight: 5.65oz x 160g
Certification(s): CE 1019 EN567

How to Engage Rope on ascender
Hold the ascender with arrow mark upside (or in opposite to rope move direction)
Pull Safety Catch outward and fix it by clipping to the body.
Install rope between device body and cam.
Release safety catch and make sure cam firmly bite rope.

How to remove rope from ascender
When remove rope from ascender, it's vital and must kept in mind that ascender should have a tendency to move upward or in arrow mark direction while operator opens safety catch.
The action is to protect rope sheath from abrasion.

Working Principle
Cams installed allow device to move along rope upward or in the arrow mark direction but clamp to rope when pulled in the opposite direction.

Applications
Single Rope Access: SRT Arborist, Working at height, Rescue System, etc. Mainly to keep body upright and add safety protection.
Process Capture System: in hauling/rigging /tensioning pulley system, process capture system can be easily realized by ascenders.
Therefore, chest ascender is also widely used in slackline, hammock, and other rigging system setups to facilitate operation.
Country USA
Brand GM CLIMBING
ItemPartNumber GM1509
Model GM1509
UPCs 601279230732
EANs 0601279230732
ReleaseDate 0000-00-00

Country	USA
Brand	GM CLIMBING
ItemPartNumber	GM1509
Model	GM1509
UPCs	601279230732
EANs	0601279230732
ReleaseDate	0000-00-00
