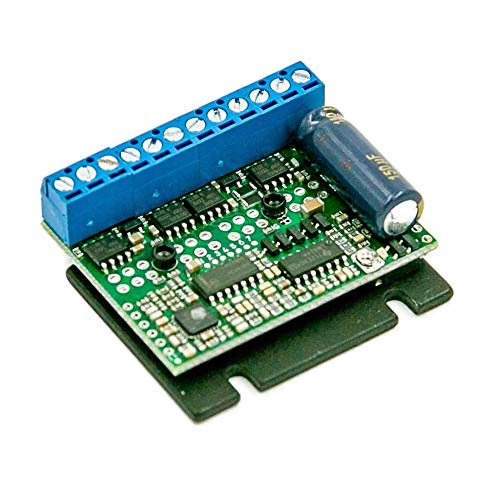

Geckodrive G251X Micro Stepping Stepper Motor Driver | 50VDC 3.5A NEMA 17-34 | 2 Phase | Perfect for CNC, 3D Printing Machines | Made and Supported in the USA

Sold Out / Out of Stock

Geckodrive G251X Micro Stepping Stepper Motor Driver | 50VDC 3.5A NEMA 17-34 | 2 Phase | Perfect for CNC, 3D Printing Machines | Made and Supported in the USA

Designed to be a small stepper motor control with a high power density, the G251X excels at driving stepper motors from NEMA 17 to NEMA 34.

Geckodrive offers quality and customer service unavailable from competing products.

The voltage range of 15 - 50VDC ensures that it can drive most common motors without sacrificing speed, and its 5A peak current output means you don't have to sacrifice torque.

Equipped with the same midband resonance compensation, low speed smoothness adjustment, and full step morphing as our larger drives allows the G251X to be an excellent motor control for mid-range stepper motors.

The G251X can fit in most applications due to its small form-factor (1.675" x 1.56" x 0.585"), and its light weight (0.45 oz) makes it perfect for battery driven and mobile uses.

End-users and OEMs alike prefer the 3.5mm 12-position terminal block that makes for quick wiring.

OEM Discounts Please inquire directly at [email protected] for more information.

FEATURES: 15-50VDC, 3.5 AMP NEMA 17 to NEMA 34 Proprietary anti resonance algorithms Midband resonance compensation Full step morphing to increase top end torque
Country USA
Brand PALAMEILAMNFM
Manufacturer Geckodrive Inc.
Binding Misc.
ItemPartNumber G251X
Model G251X
ReleaseDate 0000-00-00
