Geekstory 4pcs 50kg Load Cell Half Bridge Strain Gauge Human

Geekstory 4pcs 50kg Load Cell Half Bridge Strain Gauge Human Body Scale Digital Weighting Sensor + 1pc HX711 AD Amplifier Weight Module for Arduino
- This load sensor, sometimes called a strain gauge, is the same one found in digital bathroom scales
- The sensor is a group of half-bridge strain gauge, there are 3 ways to use it
- This module uses 24 high precision A/D converter chip hx711, specially designed for the high precision electronic scale

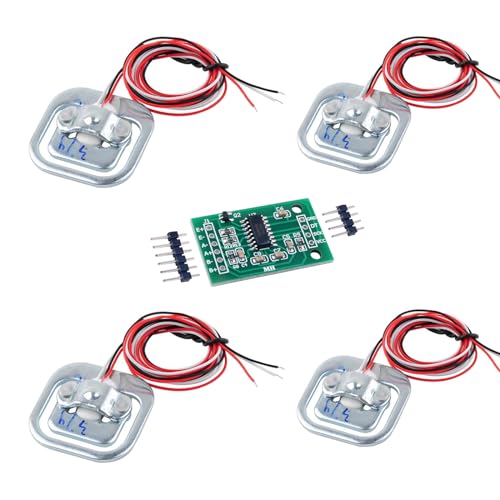

- You will receive 4pcs 50kg Half-bridge Load Cell + 1pc HX711 AD Weight Module
- If you need technical documentation, please click “Geekstory‘’to em-ail us
HX711 AD Module
This module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale designwith two analog input channelthe internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge type pressure bridge (such as pressureweighing sensor mode)is of high precisionlow cost is an ideal sampling front-end module.

Features:
Two selectable differential input channels
On-chip active low noise PGA with selectable gain of 3264 and 128
On-chip power supply regulator for load-cell and ADC analog power supply
On-chip oscillator requiring no external component with optional external crystal
On-chip power-on-reset
Simple digital control and serial interface: pin-driven controlsno programming needed
Selectable 10SPS or 80SPS output data rate
Simultaneous 50 and 60Hz supply rejection
Current consumption including on-chip analog power supply regulator: normal operation < 1.5mApower down < 1uA
Operation supply voltage range: 2.6 - 5.5V
Operating Temperature Range:-20 degree ~ +85 degree

50kg Load Cell
This load sensor, sometimes called a strain gauge, is the same one found in digital bathroom scales (you know, the ones you use in January for your New Year's resolutions, and then forget about a month later).
The sensor is a group of half-bridge strain gauge, there are 3 ways to use it :
1. Use one sensor with an external resistor to form a full-bridge measurement, the range of a sensor range: 50kg. External resistance on the higher requirements.
2.Use two sensors to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg
3.Use four sensors to form a full-bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg
Country USA
Brand Geekstory
Manufacturer Geekstory
Binding Kitchen
ItemPartNumber 1
Model FZ1802AX4+FZ0728
Color Green & Silver
Size Small
UnitCount 4
UPCs 702795764395
EANs 0702795764395
ReleaseDate 0000-00-00

Country	USA
Brand	Geekstory
Manufacturer	Geekstory
Binding	Kitchen
ItemPartNumber	1
Model	FZ1802AX4+FZ0728
Color	Green & Silver
Size	Small
UnitCount	4
UPCs	702795764395
EANs	0702795764395
ReleaseDate	0000-00-00

Geekstory 4pcs 50kg Load Cell Half Bridge Strain Gauge Human Body Scale Digital Weighting Sensor + 1pc HX711 AD Amplifier Weight Module for Arduino
