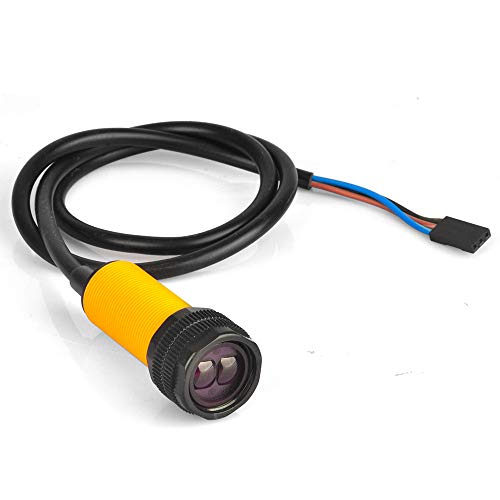

Gowoops Infrared Photoelectric Sensor E18-D80NK Obstacle Avoidance for Arduino Robot Car

Pin Definitions:

Brown ---- "+"

Blue    ---- "-"

Black  ----  Signal

Applications:

1. Automatic production line of goods counting equipment

2. Multi-function reminder

3. Take the maze robot

Electrical Characteristics:

Sensing range: 3-80cm

Sensing object: Translucency, opaque

Supply voltage: DC5V

Output operation: Normally open (O)

Output: DC three-wire system (NPN)

Technical Parameters:

1. Output Current DC / SCR / Relay Output: 100mA / 5V power supply

2. Current consumption DC <25mA

3. Response time <2ms

4. Pointing angle: ≤ 15 °, the effective distance 3-80 CM adjustable

5. Detection of objects: transparent or opaque body

6. Working temperature: -25°C ~ +55 °C

7. Standard detection object: the following incandescent 3000LX below 10000LX sunlight

8. Housing material: plastic

Size:

Diameter: 18MM

Sensor length: 45MM

Lead Length: 45CM

Package Include:

1 x E18-D80NK Photoelectric Sensor
