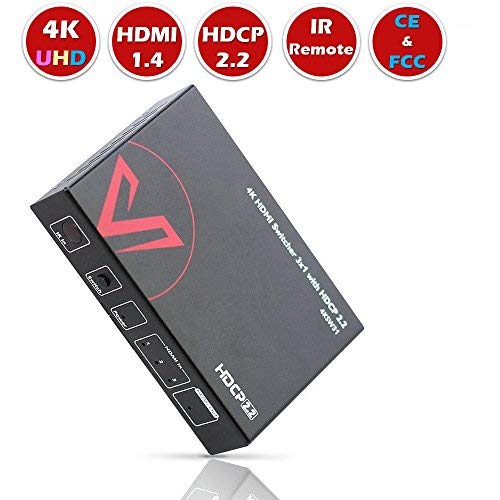

HDMI Switch 3X1 with IR Control,4K60Hz,HDCP 2.2 HDMI 1.4,Dolby Atmos & DTS:X, 3 Port hdmi switcher,No Need Extra Power Adapter
Product Description
HDMI Switch 3X1 with IR Control,4K60Hz,HDCP 2.2 HDMI 1.4,Dolby Atmos & DTS:X, 3 Port hdmi switcher,No Need Extra Power Adapter
Troubleshooting:
1.POWER:Make sure all devices are powered on.(Source, extender, display devices)
2.INDICATOR:Make sure LED indicators of transmitter and receiver are normal according to user manual.
3.DEVICES: Make sure picture can be shown normally when connecting source to display devices directly.
4.CABLE:Try to plug in and out HDMI cable or change another HDMI cable. For 4K@60Hz, HDMI cable should be less than 3m and standard HDMI cable is needed.
5.COMPATIBILITY: Please test other source and display devices to determine whether it is a compatibility issue.
6. Black Screen: Please check the source device if is PS4 Pro. If yes, please set the output video resolution of PS4 Pro to 4K@60Hz 4:2:0 or below.
Package Contents
1x 4KSW31
1x IR Remote
1x User Manual
General Information
Dimension: 110mm x 70.2mm x 25mm
Weight: 0.24kg
Power Consumption: 0.15W
Technical Details
I/O Connections:
3x HDMI IN
1x HDMI OUT
Input/Output Signal Type:
HDMI 1.4 with 4K@60Hz 4:2:0 8bit HDCP2.2
Input/Output Resolution Support:
4096x2160@24/25/30/50/60Hz
3840x2160@24/25/30/50/60Hz
1080p@24/25/30/50/60Hz, 1080i@50/60Hz
720p@25/30/50/60Hz, 576p@50Hz, 480p@60Hz
Note: 4096x2160/3840x2160@50Hz/60Hz is based on Chroma sub-sampling 4:2:0 8bit only
Transmission Distance :
3m HDMI input/output transmission distance @4K.
Technical Specifications
