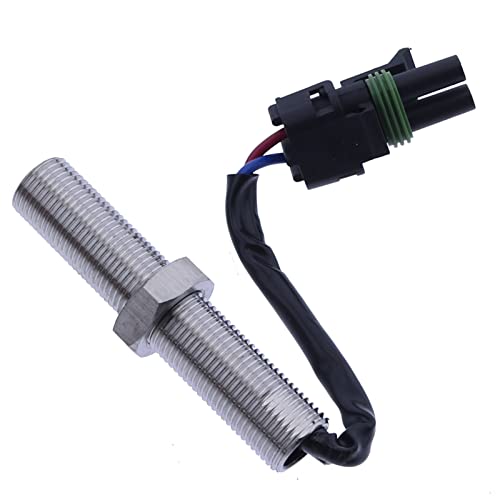

HOLDWELL Magnetic Pick Up MPU 3034572 Pickup Speed Sensor

HOLDWELL Magnetic Pick Up MPU 3034572 Pickup Speed Sensor Compatible with Cummins Engine K38 QSK38 CM2150 MCRS QSK38 CM850 MCRS G38 KTA38GC CM558 QSK38 CM2150 K106
- Part Name: Pickup Speed Sensor
- Part Number: 3034572
- Fit for Cummins Engine K38, QSK38 CM2150 MCRS, QSK38 CM850 MCRS, G38, KTA38GC CM558, QSK38 CM2150 K106
- -55 deg C to 105 deg C
- 300 ohms maximum Coil Resistance
Specification:
Measure range: 50-5000Hz.
Inductance: 142MH+25%.
Thread Size: 5/8-18 UNF-2A.
Tap Drill Size: 37/64 inch.
Proximity to Gear Teeth: .028 in min. - .042 in max.(Approximately 1/2 to 3/4 turn).
Temperature Range: -55 deg C to 105 deg C.
Output at Cranking Speed: 1.5 volts AC minimum.
Maximum Output: 30 volts AC.
Coil Resistance: 300 ohms maximum.
Notice: It is not an original part.But it can work well for you.
