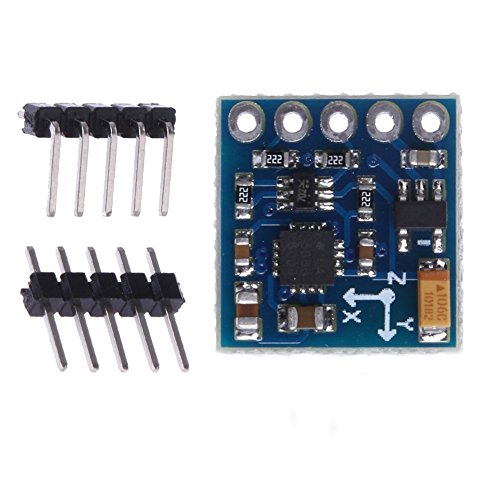

HiLetgo GY-271 QMC5883L 3-5V IIC Triple Axis Compass Magnetic Sensor Module Electronic Compass Module for Arduino
Product Description
HiLetgo GY-271 QMC5883L 3-5V IIC Triple Axis Compass Magnetic Sensor Module Electronic Compass Module for Arduino
- Main Chip：HMC5883L
- Power Supply : 3V-5V
- Measuring range : +/- 1.3-8 Gauss
- Means of communication: IIC communication protocol
- Using high-quality immersion gold PCB, machine welding process to ensure quality
Specification:
Name: QMC5883L modules (three-axis magnetic module)
Model: GY-271
Use Chip: QMC5883L
Power supply :3-5v
Communication: IIC communication protocol
Measuring range: ±1.3-8 gauss
Size: approx. 14*13*4mm
Wiring:
VCC: supply voltage 3.3V to 5V
GND: Ground connection
SCL: clock line
SDA: Data line
DRDY: Data Ready
Package Includes:
1*GY-271 QMC5883L Triple Axis Compass Magnetometer Sensor Module
2*Pin Strip
