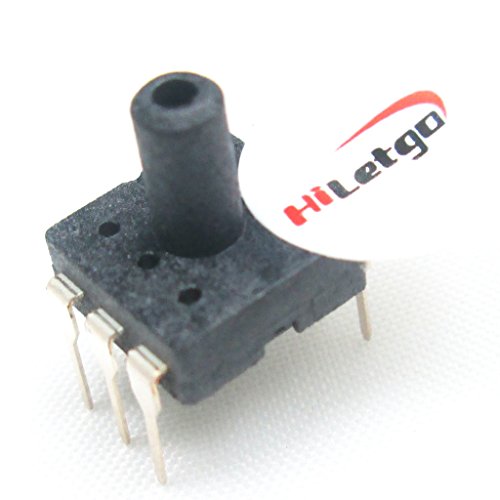

HiLetgo MPS20N0040D-D DIP-6 Sphygmomanometer Pressure Sensor (0-40kPa)

Sold Out / Out of Stock

Please be aware orders placed now may not arrive in time for Christmas, please check delivery times.

HiLetgo MPS20N0040D-D DIP-6 Sphygmomanometer Pressure Sensor (0-40kPa)
- HiLetgo MPS20N0040D-D DIP-6 Sphygmomanometer Pressure Sensor
- Power Supply 5 VDC
- Input impedance 4--6 KΩ
- Operating Temperature -40--85℃
MPS20N0040D-D DIP-6 Sphygmomanometer Pressure Sensor (0-40kPa)
Parameters
Parameter Value Unit Remarks Measuring pressure range 5.8 PSIG 40KPaG Maximum overpressure capability 3 times Measurement Range Power Supply 5 VDC Input impedance 4--6 KÎ©Â¸ Output Impedance 4--6 KÎ©Â¸ Operating Temperature -40--85â„ƒ, -40Â°F--+185Â°F, Storage Temperature -40--125â„ƒ -40Â°F--+257Â°F ,Media may contact Clean,dry,non-corrosive gases Zero bias voltage Â±25 mV Full-scale output voltage 50--100 mV Bridge resistance 4--6 KÎ©Â¸ LinearityÂ±0.3 %F.S. SluggishÂ±0.7%F.S. Bias Temperature Coefficient Â±0.08 %F.S./â„ƒ. Temperature coefficient of sensitivity -0.21 %F.S./â„ƒ
