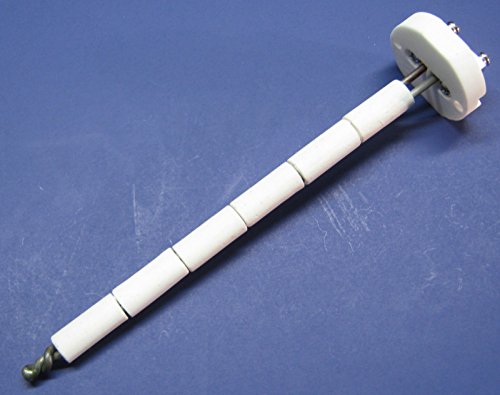

High Temperature k-Type Thermocouple Sensor Ceramic Kiln

High Temperature k-Type Thermocouple Sensor Ceramic Kiln Furnace with Connector Plate 2372F 1300C CR-02
- High Temperature K-type Thermocouple (Chromel/Alumel) with ceramic tube insulation
- Continuous use up to 2372 °F or 1300 °C, class 1 or select grade thermocouple wire AWG8 (3.2 mm)
- Total length 8.5 inch, insulated length 6.5 inch
- Oval insulator with a max diameter of 0.5 inch
- A ceramic connector block for wiring is included
This is a heavy duty K-type Thermocouple for use in kiln and furnace applications. The probe is made from AWG 8 Gauge K-type thermocouple wire (chromel and alumel) and is rated for continuous use at very high temperatures up to 2372 °F Fahrenheit or 1300 °C Celsius. The k-type thermocouple is about 8.5 inch in total length, and the 6 insulation tubes are about 6.5 inch long. This type K Thermocouple Kiln Probe is made with 6 ceramic insulators, each about 1 inch long, and it allows you to adjust the probe length by removing insulator elements and shortening the wire to your exact requirement. This k-type thermocouple is frequently used in ceramic ovens, kilns and furnaces, in pottery ovens, metal working, manufacturing and whenever you need to measure and control very high temperatures. Ships quickly from St Paul, Minnesota, USA. If you have questions we can help. Specifications: K-type Thermocouple Measurement Range -58 to 2372 °F (-50 to 1300 °C) Wire Diameter: AWG 8, 0.13" or 3.2 mm Total length: 8.5 inch (21.5 cm) Insulated length: 6.5 inch (16.2 cm) Ceramic Insulator, oval shape: L~ 0.5" W~ 0.4" (L=12.3mm W=10mm), a ceramic connector block for wiring is included. If you need a hook up cable to connect this thermocouple to a thermometer or temperature controller, please look for the CR-04, Amazon item number B071RMW3BB. This K-type connector cable is 5 ft long and has fiber glass insulation If you need a ceramic protection tube for this thermocouple, please search for our model CR-03, Amazon item number B06XKK7ZPQ. This is now also available in 14.5 inch (CR-02-14.5") and 18.5 inch (CR-02-18.5") length.
Country USA
Brand MN Measurement Instruments LLC
Manufacturer MN Measurement Instruments
Binding Misc.
ItemPartNumber CR-02
Model CR-02
UnitCount 1
UPCs 096802971549
EANs 0096802971549
ReleaseDate 0000-00-00

Country	USA
Brand	MN Measurement Instruments LLC
Manufacturer	MN Measurement Instruments
Binding	Misc.
ItemPartNumber	CR-02
Model	CR-02
UnitCount	1
UPCs	096802971549
EANs	0096802971549
ReleaseDate	0000-00-00
