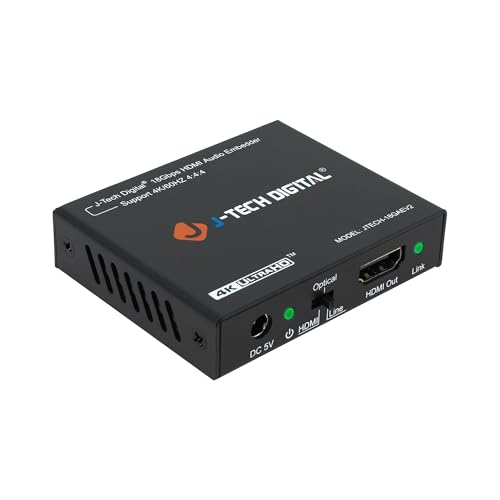

J-Tech Digital 18Gbps Digital/Analog Audio HDMI Embedder

J-Tech Digital 18Gbps Digital/Analog Audio HDMI Embedder Inserter Support 4K@60Hz 4:4:4 HDR CEC HDCP2.2/1.4 with TOSLINK Optical 3.5mm Audio Input Options [JTECH-18GAEV2]
- ✅ Audio Embedder Function: Use external audio from either digital (Toslink / SPDIF) or analog (3.5mm/line) sources to replace the audio from an HDMI signal. Also, you can choose to hear the original HDMI audio through the passthrough feature.
- ✅ Use the toggle switch to choose which source you’ll hear on your HDMI display without moving cables. Also, you can choose to hear the original HDMI audio through the pass-through feature
- ✅ UHD Resolution Support: Resolution up to 18GBPS 4K@60Hz 4:4:4. Also supports 1080p and 720p
- ✅ HDMI 2.0 & HDCP 2.2 Compliant: Supports 10-bit HDR and Dolby Vision. HDCP 2.2 / 1.4 compliant. Features CEC pass-through
- ✅ Audio Format Support: the HDMI port will passthrough all digital/analog audio such as PCM, LPCM, Dolby (Digital, Digital+, TrueHD, Atmos), and DTS. The optical audio input supports Dolby Digital and PCM. The 3.5mm audio input supports 2 channel stereo audio like PCM
- ✅ FREE LIFETIME SUPPORT: All J-Tech Digital products include a 1-year manufacturer warranty and free lifetime technical support from our customer support team located in Stafford (just outside of Houston) in the great state of TEXAS! We are available Monday through Friday: 9AM - 6PM CST. Contact information available on our seller page
J-Tech Digital is focused on producing high-quality products that integrate and distribute home entertainment for residential and commercial users. J-Tech Digital has played a major role in transforming whole-house audio, video and home theater for consumers worldwide.

Overview:

Do you need to bring together separate audio and video sources into one HDMI signal? From video tutorials to re-visiting live stream gaming, JTECH-18GAE can help! This embedder will take in your HDMI video (now up to 4K@60Hz 4:4:4!) as well as your audio whether multi-channel digital optical audio (TOSLINK/SPDIF) or analog audio (3.5mm/line). It will then output the combination as a single HDMI audio/video signal to your display. There's also the option to keep the original HDMI audio instead of replacing it. This gives more options without the hassle of moving cables around; just flip a switch. Don't just send a video and hope they understand the best parts, now they can hear you tell them as they watch.

Also supported: HDMI 2.0B (18Gbps), 10bit High Dynamic Range (HDR), Dolby Vision, HDCP 2.2/1.4, CEC passthrough, many multichannel audio formats, audio sampling rate up to 192kHz, and HDMI High Bit Rate (HBR) audio passthrough.

Specifications:
- Video: 4K@50/60Hz 4:4:4, 4K@30Hz, 1080p@120Hz, 1080p3D@60Hz; 18Gbps; HDMI: 2.0B; HDCP: 2.2/1.4; RGB, Y'CbCr: 4:4:4, 4:2:0; 12bit, 10bit HDR, Dolby Vision
- HDMI audio passthrough: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
- TOSLINK/SPDIF audio: LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
- 3.5mm/line audio: analog stereo 2CH
- Inputs: 1x HDMI, 1x 3.5mm, 1x TOSLINK
- Outputs: 1x HDMI
Package Contents:
- 1x JTECH-18GAE HDMI 18Gbps audio embedder
- 1x 5V/1A power adapter
- 1x User manual
Country USA
Brand J-Tech Digital
Manufacturer J-Tech Digital Inc.
Binding Misc.
ItemPartNumber 1729
Model JTECH-18GAE
Color black
UPCs 850001567381
EANs 0850001567381
ReleaseDate 0000-00-00

Country	USA
Brand	J-Tech Digital
Manufacturer	J-Tech Digital Inc.
Binding	Misc.
ItemPartNumber	1729
Model	JTECH-18GAE
Color	black
UPCs	850001567381
EANs	0850001567381
ReleaseDate	0000-00-00

J-Tech Digital 18Gbps Digital/Analog Audio HDMI Embedder Inserter Support 4K@60Hz 4:4:4 HDR CEC HDCP2.2/1.4 with TOSLINK Optical 3.5mm Audio Input Options [JTECH-18GAEV2]
