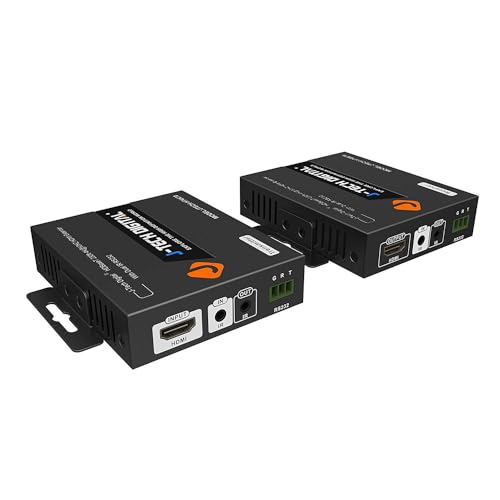

J-Tech Digital HDBaseT 4K@60HZ HDMI Extender 4K@60HZ 4:2:0, Single Cable CAT6 up to 230ft @1080P/131ft@4K, Support HDCP2.2, Deep Color, Dual IR, DTS/Dolby Digital Pass Through, CEC, RS232

J-Tech Digital is focused on providing high-quality products that integrate and distribute home entertainment for the residential and commercial markets. J-Tech Digital has played a major role in transforming whole-house audio, video and home theater.

OVERVIEW：

JTECH-HT4K70 is an ultra-thin HDBaseT extender for HDMI and bi-directional IR signals. It transmits 4K signal up to 131ft (40m), 1080P signal up to 230ft (70m) over single Cat6 cable. The extender set supports PoC function, which makes no need of power supply at the receiver end.

Specifications:

• Supports 4K 60HZ YUV 4:2:0 and 24-bit deep color
• Transmission distance reaches up to 230 feet under 1080P and up to 131 feet under 4K using cat6 and up cable. Work with cat5e cable with slightly reduced distance.
• POC (RX powered by TX)
• 2/1.4 compliant.
• HD multi-channel audio Stereo, LPCM 5.1/7.1 (Dolby True HD, DTS-HD Master Audio pass through)
• Transfer Bidirectional Infrared 20-60KHZ control signal
• Supports CEC, IR and RS232 pass-through for long distance control
• LED indicators to show the power status.

Package Includes:

• 1 x Transmitter
• 1 X Receiver
• 1 x Power Adapter
• 1 x Mount Kits
• 2 X IR Cables
• 1 X User Manual
