KNACRO AD623 / AD620 Millivolt/Microvolt Voltage Signal

KNACRO AD623 / AD620 Millivolt/Microvolt Voltage Signal Amplifier Module Adjustable Magnification Instrumentation Amplifier Module Mini Voltage Amplifier Module
- High-end dedicated instrumentation amplifier AD623 core, high precision, good linearity
- Single power supply, support 3-5.5V power supply, easy to use
- Integrated negative voltage generation module, dual power supply operation, easy to deal with negative signal/AC signal
- Power input LC filter, pure and stable, to ensure stable signal amplification
- Built-in negative voltage generation module, only a single power supply can achieve double power operation, simplified system design
High-end dedicated instrumentation amplifier AD623 core, high precision, good linearity.
Single power supply, support 3-5.5V power supply, easy to use.
Integrated negative voltage generation module, dual power supply operation, easy to deal with negative signal/AC signal.
Power input LC filter, pure and stable, to ensure stable signal amplification.
Built-in negative voltage generation module, only a single power supply can achieve double power operation, simplified system design.
Rail-to-rail output, the maximum output swing is up to + -VCC, far beyond the LM358 core products.
Magnification 2-1000 times is adjustable with potentiometer, adapt to different applications.
Module is simple, scalable and easy to facilitate the secondary development.

Specifications:

Input Range: 0.5VCC(i.e.the voltage between S+/S- is less than half of the power supply voltage)
Output Range: + - VCC (rail to rail)
Magnification: 2-1000 times(adjustable with potentiometer)
Power Consumption: 150uA(typical)/650uA(maximum)
Power Supply: 3-5.5V
Gain Accuracy: 0.35% (G>2) 0.10% (G=2)
Input Offset Voltage: 100-200uV
Input Offset Drift: 1uv/â„ƒ
Common Mode Rejection Ratio: 90db
Gain Bandwidth: 800KHZ
PCB Size: 40*23mm/1.57*0.9in

Package Includes:

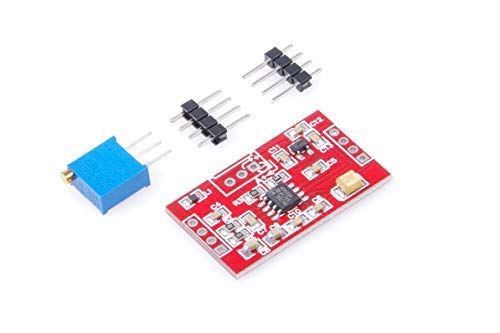

1 x Voltage Amplifier
1 x Potentiometer
2 x Pin Headers

Note:
The default magnification is 101 times with R3 resistor. If welding potentiometer, it will be adjustable, Aout=(1+100K/RG)VIN. Please remove R3 resistor when welding potentiometer.
