LEDwholesalers Dimmable 12-Volt DC Magnetic Transformer Power Supply for LED Flexible Strips, Class 2, ETL Listed, 60 Watt, 3231-12V
Product Description
LEDwholesalers Dimmable 12-Volt DC Magnetic Transformer Power Supply for LED Flexible Strips, Class 2, ETL Listed, 60 Watt, 3231-12V
- Dimmable with most standard MLV TRIAC (leading edge) dimmer switch
- Dual protection - primary and secondary circuit breakers
- Nema 3R Enclosure - suitable for outdoor use
- Two knock-outs for conduit
- Class 2; ETL listed; certified to CSA standard

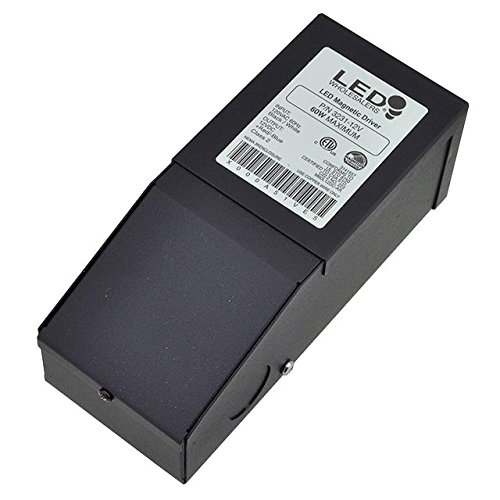

This is the most compact LED driver on the market with a magnetic transformer core. It is equipped with two circuit breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs to enable easy installation that complies with electrical code requirements.
Specifications
* Max Load: 60W
* Input Voltage: 120V AC, 60Hz
* Open Circuit Output Voltage: 11.9V DC
* Output Voltage Full Load: 10.8V DC
* Max Output Current Full Load: 5.9A
* Power Factor: 0.84
* Coil Former: Double Section Bobbin
* Thermal Class: B130℃
* Primary Leads: PVC 600V #18
* Secondary Leads: PVC 300V #16
* Dimensions (LxWxD): 6.55 x 2.25 x 2.55"
* Warranty: 1 year
Technical Specifications
