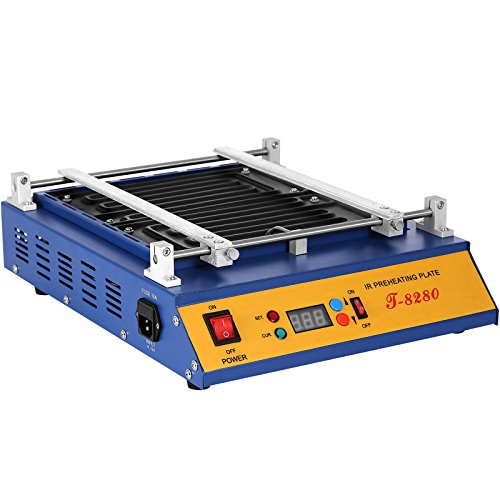

LOVSHARE T8280 1600W Preheating Oven Adjustable 0-450 Degree Infrared Preheat Oven Welder Infrared Preheating Station Infrared Preheater

Instructions for use :
Depending on the PCB size, adjust the bracket position, place the PCB board on the bracket, tighten the fastening nut
Connect the power cord
Turn on the 'power' switch; self-test starts (the digital display will display the current room temperature)
Another small switch on the Front panel is for controlling the work of the infrared preheat chassis, press 'on' the infrared preheat chassis starts to work, press 'off', works end
According to the size of the PCB board and welding process requirements, press the blue button '▲' and the red button '▼' to adjust the infrared preheat chassis Output temperature (ranging in the 0-450 ℃)
Recommendations: For leaded PCB board preheating, adjustable infrared preheat chassis temperature to 100-120 ℃ or so; When preheating the lead-free PCB board, Adjustable temperature to 120-140 ℃ or so. Can also set a different preheating temperature based on the use craft and personal experience
After pressing the switch 'ON' to open the preheat chassis, waiting for 3-5 minutes, only if the display temperature is stable at or around the set value, then start the next step; when finished work, press 'off' to turn off the preheat chassis
Note: after working and turn off the preheat chassis; do not turn off the power switch immediately, please waiting for the unit fully cooled

Package Content
Preheating plate main body x 1
Temperature sensor x 1
PCB board holder x 1
Power line x 1
User manual x 1
