Television & Video

Linear 5445 Channelplus Four-Channel Video Modulator

Sold Out / Out of Stock

Please be aware orders placed now will not arrive in time for Christmas, please check delivery times.

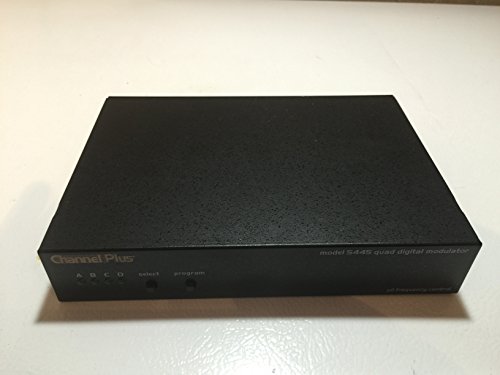

Linear 5445 Channelplus Four-Channel Video Modulator
- 4 modulated TV channels
- Creates TV channels for cameras or other video sources
- Channel range: CATV 65-125 (excluding 95-99) and UHF 14-64
- Pushbutton digital programming of modulated channels
- Compatible with da-8200 and da-550 Series distribution modulators
- 4 components/source capable
- Frequency agile with full 25 dB of output
- Digital tuning range with loop-out capability
- UHF channels 14-64, CATV channels 65-125 (excluding 95-99)
- Use a Y adapter to feed audio/video to local monitor or VCR
The Model 5445 Four-Channel Video Modulator converts four video and stereo audio inputs to four programmable TV channels (stereo audio is converted to monaural audio after modulation). The Model 5445 modulator offers video loop-through. Jumpers on the Model 5445 terminate the video inputs at 75 ohms. When a jumper is removed, the input can be looped using a "Y" adapter to feed the video to a local monitor or VCR.

Country	USA
Brand	Linear
Manufacturer	Linear
Binding	Electronics
ItemPartNumber	5445
Model	5445
Warranty	One year warranty against manufacturer defect
Color	Black
ReleaseDate	2018-08-10
UnitCount	1
UPCs	071090176081
EANs	0803982871510
