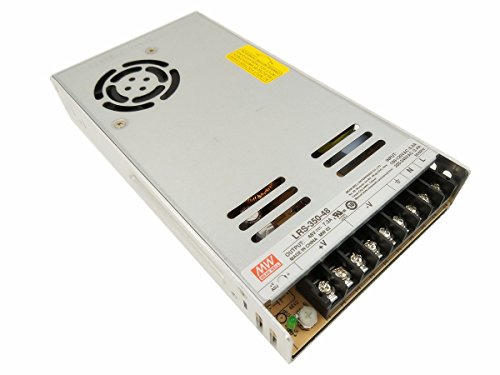

MEAN WELL LRS-350-48 350.4W 48V 7.3 Amp Single Output

MEAN WELL LRS-350-48 350.4W 48V 7.3 Amp Single Output Switchable Power
- Primary output voltage (vdc): 48
- Output current (a): 7.3
- Maximum output power (w): 350
- Family: lrs-350
- Input voltage (vac): 90 to 132, 180 to 264
350.4W 48V 7.3A Single Output Switchable Power Supply 48 Volts 7.3 Amps Features â€¢ AC input range selectable by a switch â€¢ Withstand 300 VAC surge input for 5 seconds â€¢ No load power consumption â€¢ 1U low profile â€¢ High operating temperature, up to 70Â°C â€¢ Protections: Short circuit / Overload / Over voltage / Over temperature â€¢ Built-in cooling fan, ON-OFF control â€¢ Compliance to UL 60950-1 â€¢ Withstand 5G vibration test â€¢ High efficiency, long life and high reliability â€¢ LED indicator for power on â€¢ 100% full load burn-in test â€¢ 3 year warranty Applications â€¢ Industrial automation machinery â€¢ Industrial control system â€¢ Mechanical and electrical equipment â€¢ Electronic instruments, equipment or apparatus Related Products â€¢ LRS-350-3.3 (3.3V 60A, 198W) Jameco P/N: 2219778 â€¢ LRS-350-4.2 (4.2V 60A, 252W) Jameco P/N: 2219786 â€¢ LRS-350-5 (5V 60A, 300W) Jameco P/N: 2219794 â€¢ LRS-350-12 (12V 29A, 348W) Jameco P/N: 2219807 â€¢ LRS-350-15 (15V 23.2A, 348W) Jameco P/N: 2219815 â€¢ LRS-350-24 (24V 14.6A, 350.4W) Jameco P/N: 2219823 â€¢ LRS-350-36 (36V 9.7A, 349.2W) Jameco P/N: 2219831 â€¢ LRS-150 Series (150 Watt, Enclosed Switchable Single Output Power Supply) â€¢ LRS-150F Series (150 Watt, Full Range Input Enclosed Switching Power Supply) â€¢ LRS-200 Series (200 Watt, Enclosed Switchable Single Output Power Supply) Detailed Specifications: â€¢ Primary Output Voltage (VDC): 48 â€¢ Output Current (A): 7.3 â€¢ Maximum Output Power (W): 350 â€¢ Family: LRS-350 â€¢ Input Voltage (VAC): 90 to 132, 180 to 264 â€¢ Input Frequency: 47 to 63 â€¢ Maximum Input Current (A): 6.8 â€¢ Output Connector Type: Screw Terminal Block â€¢ Number of Outputs: 1 â€¢ Product Type: AC to DC Power Supply (more.).
Country USA
Brand MEAN WELL
Manufacturer MEAN WELL
Binding Tools & Home Improvement
ItemPartNumber LRS-350-48
Model LRS-350-48
ReleaseDate 2018-02-15
UnitCount 1
UPCs 647336003635
EANs 0616010528832

Country	USA
Brand	MEAN WELL
Manufacturer	MEAN WELL
Binding	Tools & Home Improvement
ItemPartNumber	LRS-350-48
Model	LRS-350-48
ReleaseDate	2018-02-15
UnitCount	1
UPCs	647336003635
EANs	0616010528832

MEAN WELL LRS-350-48 350.4W 48V 7.3 Amp Single Output Switchable Power
