MECCANIXITY 4 Set Human Body Scale Resistance Strain Half

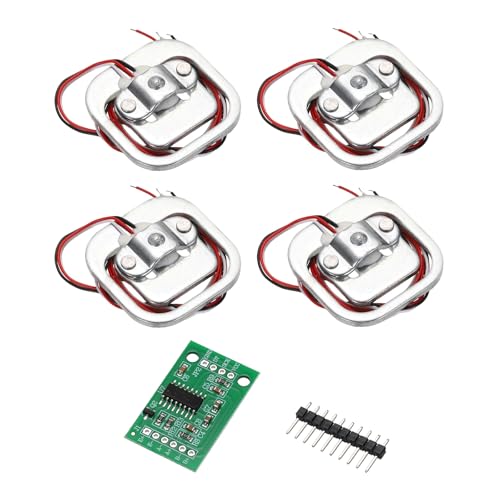

MECCANIXITY 4 Set Human Body Scale Resistance Strain Half Bridge Load Cell Weighing Sensor 50KG + HX711 24 Bit Precision Load Cell Sensor Module 20x33mm for Human Scale
- A half-bridge human body scale sensor paired with an HX711 module detects weight through two strain gauges resistance changes, amplified by the HX711 for noise-resistant readings. Designed for high precision measurement applications, it suits home scales, fitness tracker, or basic health monitors.
- Half Bridge Load Cell Sensor & HX711 Load Cell Sensor Module: Sensor Size: 34 x 34 x 7.6 mm / 1.34 x 1.34 x 0.3 inch (L x W x H); Sensor Module Size: 33 x 20 mm / 1.3 x 0.79 inch (L x W); Maximum Measure Force: 50KG / 110lb; Rated Output Sensitivity: 1.0+/-0.1 mV/V; Output Impedance: 1000±20 ohm; Material: Aluminium Alloy;
- A half-bridge human body scale sensor with an HX711 module offers precision weight measurement through the HX711 24-bit digitization and noise filtering. Its simplified design suits home scales or fitness tracker. The HX711 adjust for lower sensitivity through adjustable gain and automated calibration, ensuring stable readings for health monitoring.
- This sensor contains a set of half-bridge strain gauges, and there are three ways to use it: 1. Use one sensor with an external resistor to form a full-bridge measurement, and the range is the range of one sensor: 50KG. The external resistor has high requirements. 2. Use two sensors to form a full-bridge measurement, and the range is: 50KGx2=100KG 3. Use four sensors to form a full-bridge measurement, and the range is: 50KGx4=200KG
- Please try to avoid overloading when using the sensor to prevent damage.
Country USA
Brand MECCANIXITY
Manufacturer MECCANIXITY
ItemPartNumber mea250425ee000966
Color green
Size 20x33mm
UnitCount 4
ReleaseDate 0000-00-00

Country	USA
Brand	MECCANIXITY
Manufacturer	MECCANIXITY
ItemPartNumber	mea250425ee000966
Color	green
Size	20x33mm
UnitCount	4
ReleaseDate	0000-00-00

MECCANIXITY 4 Set Human Body Scale Resistance Strain Half Bridge Load Cell Weighing Sensor 50KG + HX711 24 Bit Precision Load Cell Sensor Module 20x33mm for Human Scale
