Makermotor 3/8" D Shaft 12vdc Remote Control Wireless Electric Gear Motor Momentary Switching between Reverse and Forward …
Product ID: B005M09QDA
Condition: New
Sold Out
Product Description

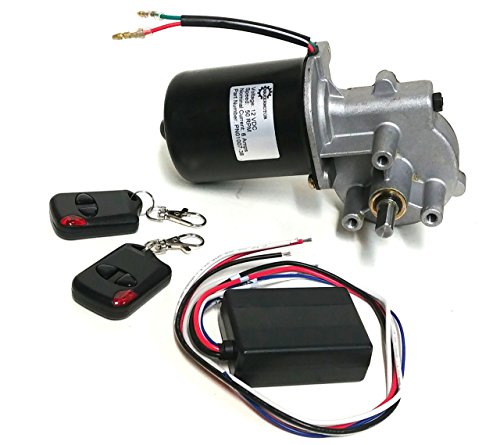

Makermotor 3/8" D Shaft 12vdc Remote Control Wireless Electric Gear Motor Momentary Switching between Reverse and Forward …
- Momentary Switch Option 12v dc 50 RPM gear motor with wireless remote control
- 3/8" shaft with 1 flat ("D" shaft) where flat to OD is 0.322" and the length of the shaft is 0.886" long
The gear motor is measured to be 7 inch long and the motor itself has a diameter of 2.5 inches.
3/8" shaft with 1 flat ("D" shaft) where flat to OD is 0.322" and the length of the shaft is 0.886" long Rated voltage of this gear motor is 13.5 VDC and maximum speed is 50 RPM. Rated output load is 60 watts and output toruqe at 50 RPM is 6 N-m (4.4 ft-lb). Mounting is based on M6 screw mounting.
The wireless controller functions as a reversible momentary control switch from a 12v dc power source. By holding down the right side button, the motor runs in one direction until the user releases the button; by holding down the left side button, the motor runs in the opposite direction until the user releases the button. Current rating is 6 amps. Two transmitters (with batteries) are included in this package. Wireless signal range is 100 ft.
The wireless controller functions as a reversible momentary control switch from a 12v dc power source. By holding down the right side button, the motor runs in one direction until the user releases the button; by holding down the left side button, the motor runs in the opposite direction until the user releases the button. Current rating is 6 amps. Two transmitters (with batteries) are included in this package. Wireless signal range is 100 ft.
Technical Specifications
Country
USA
Brand
Makermotor
Manufacturer
Makermotor
ItemPartNumber
PN00111
Model
PN00111
