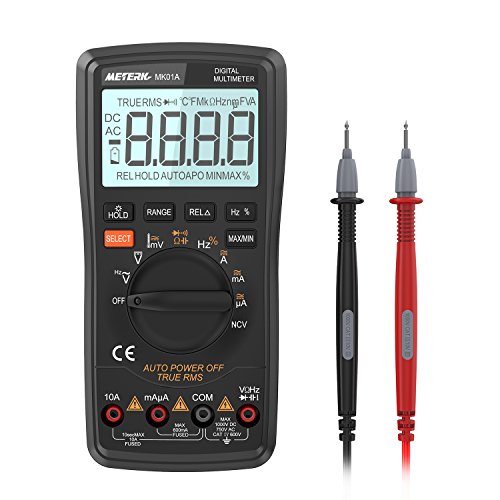

Meterk Digital Multimeter 6000 Counts True RMS Auto Range DMM,NCV Detector DC AC Voltage Current Meter, Live Line Tester Temperature Continuity HZ Test
Product Description
Meterk Digital Multimeter 6000 Counts True RMS Auto Range DMM,NCV Detector DC AC Voltage Current Meter, Live Line Tester Temperature Continuity HZ Test
- 6000 Counts & Multi-function: Can display 6000 counts and test AC/DC voltage/current, diode, resistance, capacitance, frequency, duty cycle, temperature, continuity, live line test with 10 auto-ranging.
- Precision Circuit Board & Overload Protection: Use the PTC ceramics protection circuit for resistance, frequency measurement, shielding interference and Continuity Test can be 9.999mF.
- "SELECT" key for some functions selection: Relative value testing, data hold, MAX/MIN value hold and auto power off function.
- Easy to Use & Clear to Read: Large LCD display with backlight, convenient to use.
- Portable Design: There is a back bracket for supporting multimeter, and also can collect Test Probe for your convenience.
Specifications:
Brand Name: Meterk
Color: Black
Material: PVC Plastic
Range Control: Auto Range
Screen Size: 65 * 40mm / 2.56 * 1.57in
DC Voltage Range: 600mV/6V/60V/600V/1000V
DC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V/1V
AC Voltage Range: 600mV/6V/60V/600V/750V
AC Voltage Resolution: 0.1mV/1mV/10mV/100mV/1V
DC Current Range: 600μA/6000μA/60mA/600mA/10A
DC Current Resolution: 0.1μA/0.001mA/0.01A/0.1A/1A
AC Current Range: 600μA/6000μA/60mA/600mA/10A
AC Current Resolution: 0.1μA/0.001mA/0.01A/0.1A/1A
Frequency Range: 10Hz/100Hz/1KHz/10KHz/100KHz/1MKHz/20MHz
Frequency Resolution: 0.01Hz/0.1Hz/1Hz/10Hz/100Hz/1KHz/10KHz
Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Resistance Resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ
Capacitance Range: 60nF/600nF/6μF/60μF/600μF/6mF
Capacitance Resolution: 10pF/100pF/1nF/10nF/100nF/1μF
Temperature Range: -20～1000℃/ -4～1832℉
Temperature Resolution: 1℃/1℉
Function: Hold Mode, Backlight, Auto Power off, NCV Test, Frequency Test, Temperature
Measurement, Continuity Buzzer Test with LCD, Over Load Protection,
Short-circuit Protection, Live Line Test, Diode Test
Sampling Time: about 3 times/second
NCV Detection: ≥2V rms
Power Supply: 1 * 9V NEDA1604/6F22 Battery (Included)
Operating Environment: 0～40°C(32-104°F)
Storage Environment: -20～60°C(-4-140°F)
Item Size: Approx. 184 * 90 * 46mm / 7.67 * 3.35 * 1.37in
Item Weight: 360g / 12.69oz (Battery Included)
Package List:
1 * Digital Multimeter
1 * Test Lead
1 * TP01 Thermocouple Sensor Probe
1 * Use Manual (English + French + German + Italy + Spanish)
Technical Specifications
