Midnite Solar 4-Position DC Circuit Breaker, Model# Big Baby Box

R 2,269

or 4 x payments of R567.25 with Payflex

Payflex

Availability: Currently in Stock

Delivery: 10-20 working days

Midnite Solar 4-Position DC Circuit Breaker, Model# Big Baby Box
- Environmental Rating - Type 1 (Indoor)
- Big Baby’s DIN rail accepts up to 4 breakers (not included)
- Max. Wire - breakers 6 AWG | Max. AC Voltage - 277VAC | Max. DC Voltage - 300VDC
- Listed by ETL for US & Canada | Made in the USA | Warranty - 5 yrs.
- Size: 8"L x 5"W x 3"D | Box Size: 9"L x 6"W x 4"D | Weight: 3 Lbs

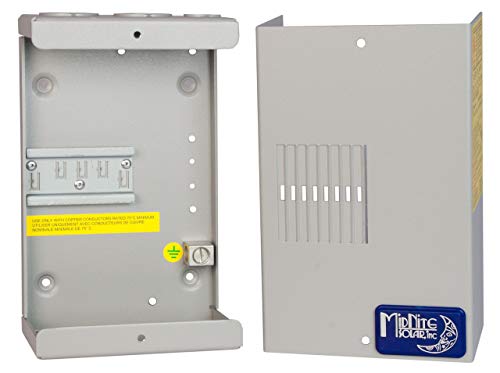

The MidNite Solar Big Baby Box Enclosure is the bigger brother of the original Baby Box Enclosure. The Big Baby Box Enclosure includes a ground box lug and mounting provisions for a short insulated bus bar. The MidNite Solar Big Baby Box Enclosure can be used to enclose a variety of solar equipment and devices. The MidNite Solar Big Baby Box Enclosure can hold up to 4 13mm dinrail breakers from 1 - 63 amps. The Big Baby Box Enclosure measures about 9 x 5 x 4 inches and only weighs 3 lbs. The enclosure can be mounted on different surface types depending upon design and user preference.
Country USA
Brand MidNite Solar
Manufacturer MidNite Solar
Binding Lawn & Patio
ItemPartNumber BIG BABY BOX
Model Midnite Solar Model# Big Baby Box
UPCs 102309887006
EANs 0102309887006
ReleaseDate 0000-00-00
