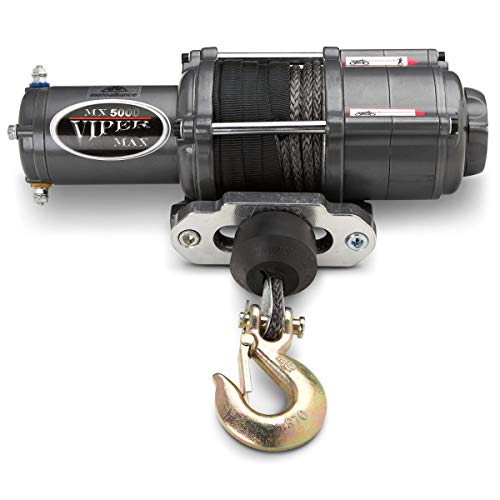

MotoAlliance VIPER Max ATV/UTV Winch 5000lb with 40 feet BLACK

MotoAlliance VIPER Max ATV/UTV Winch 5000lb with 40 feet BLACK Synthetic Rope

The VIPER Max 5,000lb Winch is a durable winch for ATV/UTVs, UTVs and Side by Sides. VIPER MAX winches also carry the official IP67 waterproof rating -- a claim not made by any other winch in the market. Manufactured in a ISO/TS 16949 Facility with military grade raw materials, it is a great winch for snowplowing and mudding with ATV/UTV and UTVs. The VIPER Max has a sealed planetary metal gear train, a 1.95 horsepower permanent magnet motor, automatic brake, and stainless-steel hardware. Waterproof handle bar switch, cabled/tethered remote switch and synthetic rope are standard on this Max winch.

Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.

Specs
- Cable - 40 feet x 1/4" BLACK Synthetic Rope
- Motor - 12V DC, Sealed 1.95HP permanent magnet
- Rated Line Pull - 5,000lbs (2267.96 kgs)
- Line Speed - 0 lbs - 31 Amps motor draw / 26 FPM (7.92MPM)
- Line Speed - 5,000lbs - 330 Amps motor draw / 2 FPM (.61 MPM)
- Gearing / Gear Ratio - 3-Stage planetary/136:1
- Brake - Automatic, 100% load holding
- Clutch - Cam Activated
- Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
- Limited Lifetime Warranty
Country USA
Brand MotoAlliance
ItemPartNumber MX5000-BK40
UPCs 810541022610
EANs 0810541022610
ReleaseDate 0000-00-00
