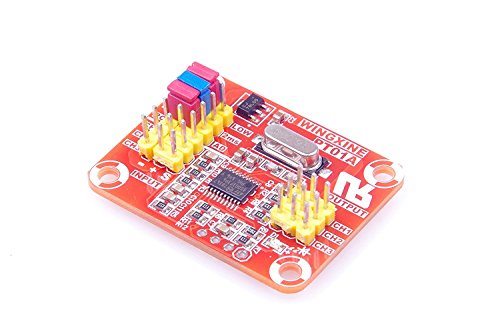

NOYITO Multifunction Signal Converter Module PT01A Servo

NOYITO Multifunction Signal Converter Module PT01A Servo Signal to Voltage and PWM Signal, Pulse Signal To Analog Voltage PWM Converter For Servo Test Signal Calibration
- Test servos :Analog voltage signal to PPM signals , PPM signal to Analog voltage signals , PPM signal to PWM signal.
- Operating Voltage : ± DC 5V （Low jumper position ）; DC7V to DC15V (High jumper position);
- Limit input Voltage:4.5V(MIN) , 5.5V (MAX) (Low jumper position); 6.0V(MIN) , 15V(MAX)(High jumper position);
- Limit output Current : 6.5.a / 7.5a; Current: ＜10mA；
- Application:Calibration servo signal , Potentiometer or joystick control servo , RC control motor speed controller.
Instructions for use:
https://www.amazon.com/clouddrive/share/WDYpWUDqQng0hA2wDQR1J0WxjuvUSI9DxnJ2UYgrcRg

Test servos :
Analog voltage signal to PPM signals
PPM signal to Analog voltage signals
PPM signal to PWM signal

Features
Operating Voltage :
DC 5V Â±ï¼ˆLow jumper position ï¼‰;
DC7V to DC15V (High jumper position);
Limit input Voltage:
4.5V(MIN) , 5.5V (MAX) (Low jumper position);
6.0V(MIN) , 15V(MAX)(High jumper position);
Limit output Current : 6.5.a / 7.5a;
Current: ï¼œ10mAï¼›
Weightï¼š7g;
Dimension:42x31x12mm / 1.65x1.22x0.47 inch(L*W*H)
Application:
Calibration servo signal
Potentiometer or joystick control servo
RC control motor speed controller

Package Included:
1Pcs Multifunction Signal Converter Module
Country USA
Brand NOYITO
EAN 0612957708801
Label NOYITO
Manufacturer NOYITO
Publisher NOYITO
Studio NOYITO
ReleaseDate 0000-00-00

Country	USA
Brand	NOYITO
EAN	0612957708801
Label	NOYITO
Manufacturer	NOYITO
Publisher	NOYITO
Studio	NOYITO
ReleaseDate	0000-00-00

NOYITO Multifunction Signal Converter Module PT01A Servo Signal to Voltage and PWM Signal, Pulse Signal To Analog Voltage PWM Converter For Servo Test Signal Calibration
