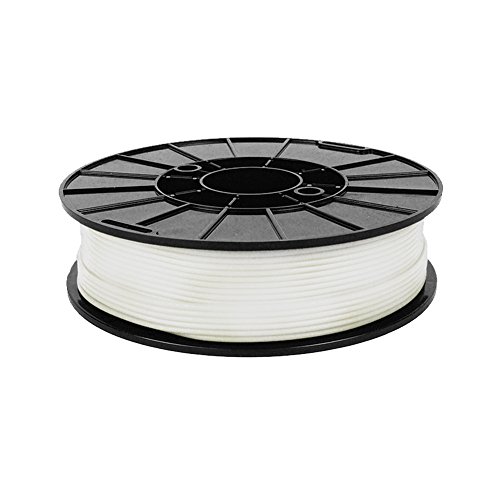

  1. NinjaFlex TPU 3D Printing Filament - 1.75mm .50kg - WATER
    NinjaFlex TPU 3D Printing Filament - 1.75mm .50kg - WATER
    NinjaFlex TPU 3D Printing Filament - 1.75mm .50kg - WATER
    Image(s) provided for illustrative purposes and may differ from the actual product
  2. NinjaFlex TPU 3D Printing Filament - 1.75mm .50kg - WATER

    [B00JF5EZ7K]
    Delivery: 10-20 Working Days
    Customer Ratings (99 reviews)
    Price R1140.00

     pinterest

This item may be available in a different size, colour, scent, version or platform. Click below to be directed to product options:

Variations
Product Description

  • Truly flexible - no fill or layer manipulation required to achieve performance
  • 660% elongation allows for repeated movement & impact without wear or cracking
  • Excellent vibration reduction
  • Shore Hardness = 85A
  • Suggested Applications: Seals, gaskets, plugs, leveling feet, protective applications.
Additional Information

NinjaFlex flexible filament leads the industry thanks to its superior flexibility and longevity compared to non-polyurethane materials. Its consistency in diameter and ovality (roundness) outpaces other polyurethane materials.

Made from a specially formulated thermoplastic polyurethane (TPU) material, this patented technology boasts a low-tack, easy-to-feed texture. The result is uniquely flexible, strong prints ideal for direct-drive extruders.

Suggested Applications: Seals, gaskets, plugs, leveling feet, protective applications.
SDS &


KEY FEATURES:

  • Shore Hardness = 85A
  • Truly flexible (no fill or layer manipulation required to achieve performance)
  • 660% elongation allows for repeated movement and impact without wear or cracking
  • Polyurethane composition allows for excellent vibration reduction
  • Patented low friction exterior allows for smooth feeding
  • Abrasion resistance 20% better than ABS and 68% better than PLA
  • Consistent diameter and material properties providing reliable, high quality prints
  • Chemical resistant to many materials, including naphtha, ASTM Oils #1-3, petroleum and freon
  • Adheres to all standard build platforms without glue or tape
  • REACH and RoHS 2002/95/EC Directive compliant

PRINTING GUIDELINES:

  • Extruder Temperature:  225°C – 235°C
  • Platform Temperature: Room temperature – 40°C
    Glue and/ or blue painters tape is suggested if not using a heated bed.
  • Print Speed:
    Top and bottom layers: 10-20 mm/ sec (600-1200 mm/ min)
    Infill speeds: 15-35 mm/ sec (900-2100 mm/ min)
    Layer 2+ use cooling fan if available.

Similar Products

Filabot 910175 Taulman 910 Alloy, 1.75Proto-pasta CFP11705 The Original Carbon Fiber Spool , PLA 1.75 mm, 500 g , BlackFilabot TCB1 Taulman Clear t-glase Filament, 1.75 mm, Blue3D Print Removal ToolHATCHBOX 3D ABS-1KG1.75-BLK ABS 3D Printer Filament, Dimensional Accuracy +/- 0.05 mm, 1 kg Spool, 1.75 mm, BlackeSUN 3D Printer CLEANING Filament 1.75mm Natural 0.1kg for Makerbot, Reprap, UP, Afinia, Flash Forge, MakerGear and all FDM 3D Printers, 1.75mm CleaningKamo 5PCS 0.4mm Drill Bits for 3D MakerBot Printer Nozzle Cleaning KitHATCHBOX 3D PLA-1KG1.75-WHT PLA 3D Printer Filament, Dimensional Accuracy +/- 0.05 mm, 1 kg Spool, 1.75 mm, WhiteHATCHBOX 3D PLA-1KG1.75-SLV PLA 3D Printer Filament, Dimensional Accuracy +/- 0.05 mm, 1 kg Spool, 1.75 mm, Silver
Specifications

Country
USA
Binding
Misc.
Brand
NinjaTek
Color
WATER
EAN
0662345146654
Label
Fenner Drives
Manufacturer
Fenner Drives
Model
3D3081175
MPN
3D3081175
NumberOfItems
1
PartNumber
3D3081175
Publisher
Fenner Drives
Size
1.75mm .5kg
Studio
Fenner Drives
ReleaseDate
0000-00-00
Most Helpful Customer Reviews

Ninjaflex is one of those materials that can make a huge difference to any project.

Pros:
+Flexible
+Silicon rubber feel, it's not very sticky though
+Binds to other materials well
+Extremely Strong
+Sticks to glass printing bed easily

Cons:
-Very difficult to print
-Very slow for printing
-Leaves lots of strings
-Doesn't hold detail extremely well

This material has a great many uses and it's pretty amazing stuff. It's clear that time and research needs to go into flexible materials. As far as the results go, most prints turn out well. It works surprisingly well with overhangs and can hold a decent amount of detail. Just don't expect the Ninjaflex to hold detail as well as PLA or other hard materials. It does have a tendency to contract and curl upwards during prints, especially with small details. Larger shapes and joints are an excellent use for Ninjaflex.

The two major problems I had to... Read more
I was a little bit wary of trying this, especially as I have only been 3D Printing for a month, but decided it had potential and decided to take the plunge.

Firstly, I should say that it is VERY soft - even more than I had imagined - think well-cooked spaghetti.

That meant, for me at least, all kinds of problems getting it to feed. After doing some research and gathering up my courage to disassemble my print head, I modified the feed assembly with a part downloaded from thingiverse.

It also has to be printed at a slower rate than ABS or PLA.

But the results are astonishing. I can print to a glass plate at 35C with no adhesion problems and no raft needed, and there's no clean-up to do.

I reckon it works out about four times the cost of ABS, but the results are worth it.
I found that this glow-in-the-dark NinjaFlex doesn't print nearly as nicely as my black NinjaFlex filament does. It feeds well through my extruder and hot-end, but it doesn't give the same quality as the black. I have printed my black flexible at speeds around 2400mm/min with no problems, although the recommended speed is more in the 1200-1600 range. The glow-in-the-dark feature brings a lot of WOWs. I've also noticed that the flexible filaments seem to cause more stringing between hot-end travel movements. My printing software/slicer has setting so eliminate all or most of this, giving a reasonably good quality print. I recommend that users NOT use high infill rates. This will do quite nicely right around 15%-20%. I printed at considerably higher infill settings and it makes the final print fairly stiff and, sometimes, hard. It will take a bit of experimenting to see what it will make it print well on your printer. Probably the biggest thing is the print speed. Start... Read more
