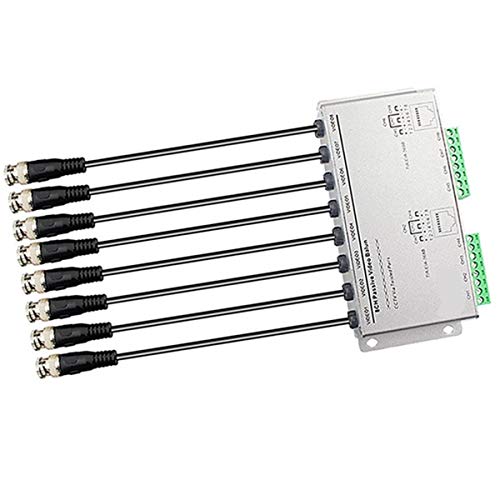

OdiySurveil(TM) 8-CH HD Passive Video Balun Transceiver,RJ45

OdiySurveil(TM) 8-CH HD Passive Video Balun Transceiver,RJ45 BNC UTP Cable Video Transmission for 720P/1080P HD-CVI/TVI/AHD CCTV Camera DVR
- Casing Material : metal shell with pure copper BNC connectors; Product Name : 8 Channel Passive HD Video Balun,with BNC Cable;
- Port : RJ45 BNC;Transmission Distance: HDCVI 720P:400m/ 1080P:250m, HDTVI 720P/1080P:250m, AHD 720P:250m/1080P:200m;
- Operating Temperature:-10℃-55℃, Storage Temperature:-20℃-70℃;Humidity:0-95%(non-condensing);
- Cable length with BNC connector is about 12.5cm, Category Type: UTP CAT5/5E/6,Compatible Format: HDCVI/HDTVI/AHD,Resolution:720P/1080P,easy to install with Omall High Quality Assurance;
- OdiySurveil(TM) Brand product with the best quality and more efficient signal transmission,do not compare with those junk materials.Dimension:7.1"x 2.0"x 1.0"(L*W*T);Weight:380g;
Description:

-100% Omall Brand New!
-Transmission Signal: 8 Channel;
-Transmission Distance: HDCVI 720P:400m/ 1080P:250m, HDTV 720P/1080P:250m, AHD 720P:250m/1080P:200m;
-Category Type: UTP CAT5/5E/6;
Video Transmission Properties and Port:
Compatible Format:BNC-M;
Twisted-pair Video Connector: Push-terminal;
-Compatible Format: HDCVI/HDTVI/AHD;
Resolution:720P/1080P;
-Anti-interference:>60db;

-ESD: 1A contact discharge electricity level3;
-Coaxial Cable Connector: 2KV(common-code) Per:IEC1000-4-5;
-UTP Cable Connector:2KV(different-code),4KV(common-code).Per:IEC1000-4-5;
-Impedance: BNC Mother-75ohms,UTP Cable-100ohms;
-Dimension(L*W*H):180*52*25mm;
-Shell Material: ABS, Color: Silver, Net Weight:380g;
-MTBF:>10000H;
-Operating Temperature:-10â„ƒ-55â„ƒ, Storage Temperature:-20â„ƒ-70â„ƒ;
-Humidity:0-95%(non-condensing).
Cable Recommendation:
Link cable is recommended to use high quality UTP cable.
Poor quality cable or network connection or improper construction will cause unstable connection,video or sound disruptions,picture noise appears.

Note:
The transceiver is not waterproof set,so keeping transceiver away wet environment will be prefer;
-Suggest to use the transceiver indoors.When installing the transceiver in outdoor,please install it in a waterproof place.

Package Included :
1 x 8-CH Passive HD BNC UTP Cable Transceiver
Country USA
Brand OdiySurveil
Manufacturer Overseasymall
Binding Electronics
ItemPartNumber OM15121202
Model OM15121202
Color Silver
UPCs 745950094395
EANs 0745950094395
ReleaseDate 0000-00-00
