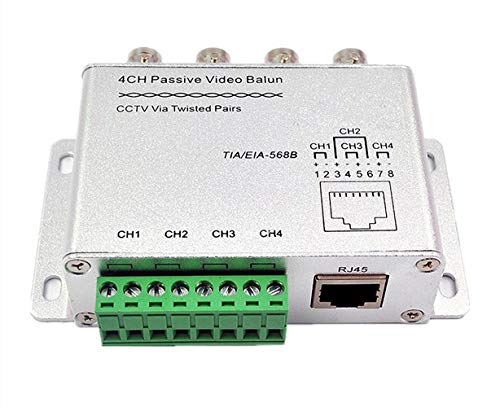

OdiySurveil(TM) UTP 4 Channel Passive HD Transceiver,BNC RJ45

OdiySurveil(TM) UTP 4 Channel Passive HD Transceiver,BNC RJ45 UTP Converter for 720P 1080P CVI/TVI/AHD CCTV System
- Shell Material:Metal shell with pure copper BNC connectors,Product Name: 4CH Passive HD Transceiver;
- Size: 11.2 x 5.2 x 2.5cm ;Weight: 180g;Anti-interference: 60db;
- BNC Male Impedance: 75ohms,UTP Cable Impedance:100ohms;Resolution: 720P/1080P; No power required, Built-in transient suppression protection;
- Working temperature:-10°C~55°C;Storage temperature: -20°C - 70°C;Humidity: 0~95%(non-condensing);
- Package Content : 1 x 4CH Passive HD Transceiver ; 1 x Manual;OdiySurveil(TM) Brand product with the best quality and more efficient signal transmission,do not compare with those junk materials.
Description:

100% Omall Brand New!
With working with passive transceiver and active transmitters allow signals transmission up to 200m and 400m respectively.
The unparalleled interference rejection and low emissions of the UTP allow video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits.
Video Balun Transceiver can simplify the wiring project and save wire use quantity.
Save project wire expenses. Each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal.
Transmission Signal: 4 Channel
Transmission Distance: HDCVI 720P:400m/ HDCVI 1080P:250m;HDTVI 720P/1080P:200m; AHD 720P:250m/AHD 1080P:200m
Category Type: UTP CAT5/5E/6
Compatible Format: BNC-M
Twisted-pair Video Connector:Push-terminal

Video Transmission Compatible Format: HDCVI/HDTVI/AHD ;Anti-interference: 60db
ESD: 1A Contact Discharge Electricity Level 3
Coaxial Cable Connector: 2KV(common-code).Per:IEC1000-4-5
UTP Cable Connector: 2KV(different-code),4KV(common-code).Per:IEC1000-4-5
BNC Male Impedance: 75ohms ; UTP Cable Impedance:100ohms
Dimension(L*W*H): 112mm*52mm*25mm
Shell Material: ABS & Metal ; Color: Silver ; N.W.: 180g
MTBF: >10000H
Operating Temperature: -10Â°C~55Â°C; Storage Temperature: -20Â°C~70Â°C ; Humidity: 0~95%(non-condensing)
Note:
The transceiver is not waterproof set,so keeping transceiver away wet environment will be prefer.

Cable Recommendation:
Link cable is recommended to use high quality UTP cable.
Poor quality cable or network connection or improper construction will cause unstable connection,video or sound disruptions,picture noise appears.

Package Included :
1x 4 Channel Passive HD Transceiver
Country USA
Brand OdiySurveil
Manufacturer Overseasymall
Binding Electronics
ItemPartNumber om15081901
Model om15081901
Color Silver
UPCs 703430393932
EANs 0703430393932
ReleaseDate 0000-00-00

Country	USA
Brand	OdiySurveil
Manufacturer	Overseasymall
Binding	Electronics
ItemPartNumber	om15081901
Model	om15081901
Color	Silver
UPCs	703430393932
EANs	0703430393932
ReleaseDate	0000-00-00

OdiySurveil(TM) UTP 4 Channel Passive HD Transceiver,BNC RJ45 UTP Converter for 720P 1080P CVI/TVI/AHD CCTV System
