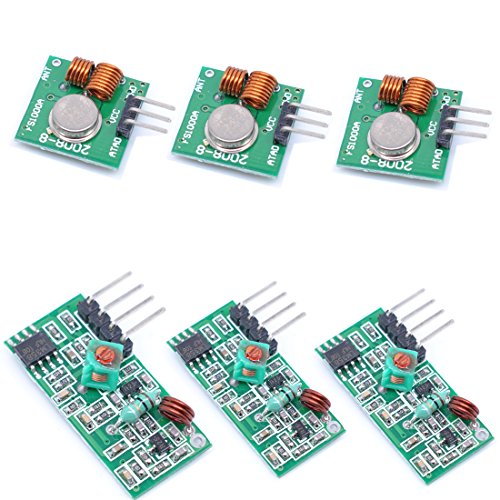

Oiyagai 3pcs 433MHz RF Wireless Transmitter and Receiver

Oiyagai 3pcs 433MHz RF Wireless Transmitter and Receiver Module Kit for Arduino/Arm/McU/Raspberry pi
- 3 x Transmitter module (433MHz) & 3 x Receiver module(433Mhz)
- These modules are used for projects when you need to communicate wirelessly between 2 devices
- It is possible to increase the range by adding a small length of cable which the device will use as an aerial.
- VCC voltage module operating voltage and good power filtering
- Antenna position has also affected the reception of the module, the installation, the antenna as possible straight away from the shield, high pressure, and interference source
Description:
VCC voltage module operating voltage and good power filtering.
Great influence on the antenna module reception, preferably connected to the 1/4 wavelength of the antenna, typically 50 ohm single conductor.
The length of the antenna 433M is about 17cm.
Antenna position has also affected the reception of the module, the installation, the antenna as possible straight away from the shield, high pressure, and interference source.
Frequency used to receive, decode and oscillation resistor should match with the transmitter.

Receiver module parameters :
1.Product Model: MX-05V
2.Operating voltage: DC5V
3.Quiescent Current: 4MA
4.Receiving frequency: 433.92MHZ
5.Receiver sensitivity:-105DB 6.Size: 30 * 15 * 7mm
7.External antenna: 32CM single core wire, wound into a spiral.

Package Content :
3 x Transmitter module (433MHz) & 3 x Receiver module(433Mhz),Use antistatic bag to pack
Country USA
Binding Misc.
Brand Oiyagai
EAN 0765470381164
Label Willwin
Manufacturer Willwin
Publisher Willwin
Studio Willwin
ReleaseDate 0000-00-00

Country	USA
Binding	Misc.
Brand	Oiyagai
EAN	0765470381164
Label	Willwin
Manufacturer	Willwin
Publisher	Willwin
Studio	Willwin
ReleaseDate	0000-00-00

Oiyagai 3pcs 433MHz RF Wireless Transmitter and Receiver Module Kit for Arduino/Arm/McU/Raspberry pi
