Okin Model JLDQ-12 & JLDQ.12.157.333K Power Recliner Motor, Electric Sofa Lift Chair Actuator Replacement Part for JLDQ.12.157.333E/F/G/H/L/P/U/V/W/Z

Okin Model JLDQ-12 & JLDQ.12.157.333K Power Recliner Motor, Electric Sofa Lift Chair Actuator Replacement Part for JLDQ.12.157.333E/F/G/H/L/P/U/V/W/Z

• APPLICATION: Different actuator/motors are not compatible with frame, the frame has strict demand for actuator/motors' minimum install dimension, stroke and plugs. The motor is suggested to replace OKIN model JLDQ.12.157.333K, also can replce JLDQ.12.157.333E/F/G/H/K/L/P/U/V/W/Z series, a little difference but not affect use. Please check your motor brand and model first.

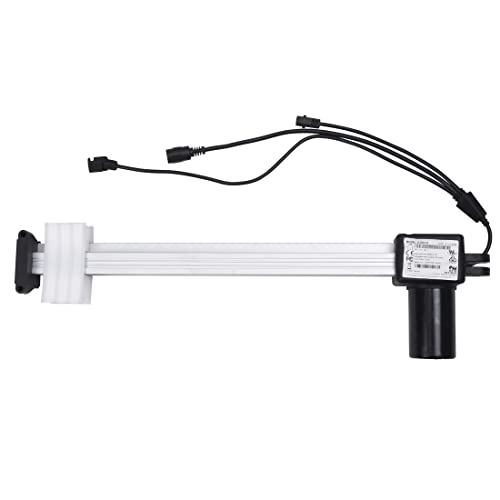

• DESCRIPTION: The actuator motor set is made of 1 motor and 3 connectors, connector with 5-pin round plug is for switch hand control, connector with 2-pin square plug and clip is for power supply, connector with 2-pin socket is for slaved motor.
• SPECIFICATION: Appearance: black (PA), silver white (aluminum); Stroke: 333mm ; Minimum Inst Size (shrink): 157mm; Maximum Inst Size: 490mm; Load: push force: 750 N pull force: 750 N.
• NOTE: Please troubleshoot the switch and power supply first, then check the motor and plug, see if it matches your recliner motor.
• PACKAGE: 1* Okin refined motor. Easy to install.
