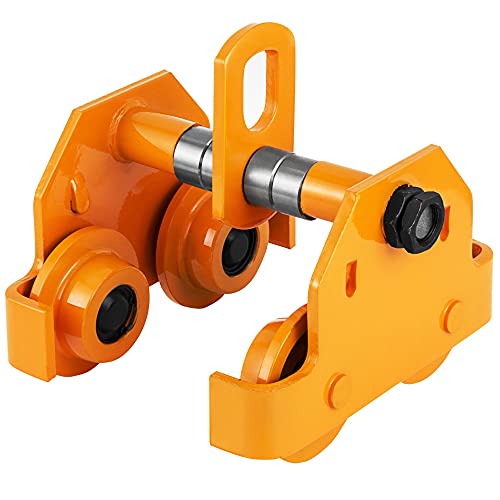

OrangeA Plain Manual Trolley 1 Ton

1 Ton Heavy Duty Manual Trolley

Heavy duty manual trolleys support weight 1 Ton.Push beam trolley is adjustable to fit standard or wide flange I-beam tracks.Multiple spacer washers make beam flange wide adjustments quick and easy. The dual wheels are designed for a straight or tapered beam track and work on both straight and curved tracks

Item Specification:

Material: Steel

Weight capacity: 2000 lbs

Minimum curved track radius: 3 ft. 3"

I-beam flange width: 2-1/2" to 7"

Wheel dimensions: 2-3/4" diameter with 3/8" wall

Trolley dimensions: 8-7/8" x 4-7/8" x 6-3/8"

Overall size: 11-1/2" x 9-1/2" x 7"

Packing weight: 26.2lbs

Feature:

Adjustable to fit standard or wide flange I-beam track

Dual wheels are designed to fit straight or tapered beam track

Works on straight or curved track

Durable powder coat finish

Pre-lubricated sealed bearings for long life and reduced maintenance

Solid Steel Construction

Adjustment Washers Included

Safe Working Load Rated for 1 ton

Application:

It is an ideal material handling tool for chain blocks, hoists, and lifting tackle and other industrial areas

Package Content

1 x 1 Ton Push Beam Trolley
