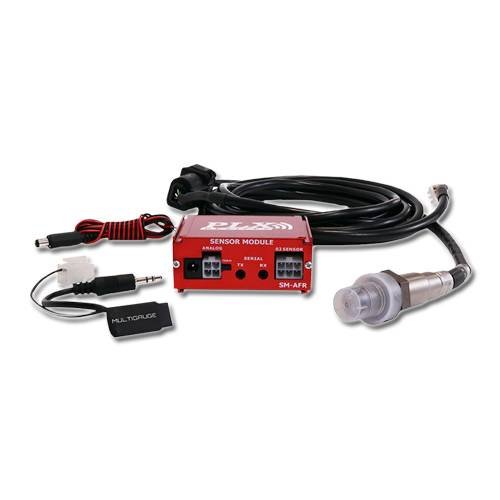

PLX Devices SM-AFR Air/Fuel Ratio UEGO Wideband Oxygen O2 Sensor + MultiGauge Link Combo with Bosch LSU4.9 O2 Sensor for Smartphone Apple/Android Interface
Product Description
PLX Devices SM-AFR Air/Fuel Ratio UEGO Wideband Oxygen O2 Sensor + MultiGauge Link Combo with Bosch LSU4.9 O2 Sensor for Smartphone Apple/Android Interface
- Download MultiGauge for Apple/Android (FREE) - Utilizing your smartphone as a gauges give you more screen size, more customization, software upgradability and a flexible easy user interface over the traditional gauge cluster.
- Fast and accurate - PLX Widebands employ PID critically damped technology, are individually hand tested, and are accurate to less than 0.1AFR.
- Plays nice - Works with gasoline, diesel, methanol, ethanol, LPG, Diesel, E85. 0-5V analog output interfaces with 3rd party ECU’s and data loggers. 0-1V simulated narrowband output.
- Monitor sensor health - Proprietary IntelliHealth algorithm detects your sensor’s remaining life and reaction time.
- Fully plug and play - Installation requires no manual calibration – simply install your sensor, connect the wire harness, and apply power.
MultiGauge app for Apple and Android The app automatically detects your PLX sensor modules and configures your gauges. MultiGauge reports both 0-15 PSI and 0-30 PSI boost ranges in both imperial / standard and metric units.The AFR sensor module supports lambda as well as all fuel types-gasoline, diesel, methanol, ethanol, E85, CNG, and LPG.
With both AFR and and Vac/Boost modules attached, MultiGauge automatically configures to display both parameters. This combination allows for advanced features like intelligent warning which alert you if your engine is running in unsafe conditions.
Already have sensor modules? The MultiGauge Link is all you need to connect your existing sensor modules to your smart device for a new and updated user experience. If you already have our SM-AFR + DM-6 gauge combo, simply connect our y-splitter and you can run DM-6 and MultiGauge app simultaneously.
Tech Specs for MultiGauge Link: Voltage: 3.3V Power Consumption: 0.1 Watts Wireless: Bluetooth 4.1 Serial Interface: 19200 Baud 8N1 Range: ~50ft line of light Operating Temperature: 0 - 80 Deg C Firmware Updatable: Yes, OTA (Over the Air) Module dimensions: 0.2" x 0.6" x 1.2" (3mm x 15mm x 30mm) Cable length: 2.5"
Technical Specifications
