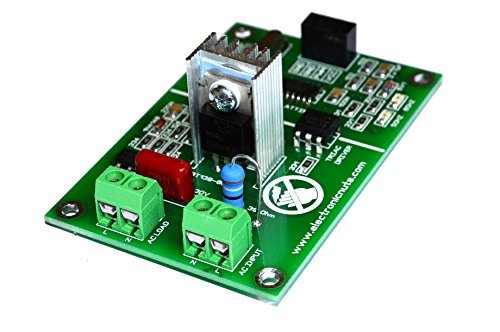

PWM AC Light Dimmer Module 50Hz 60Hz For Arduino and Raspberry

PWM AC Light Dimmer Module 50Hz 60Hz For Arduino and Raspberry LED Smart Home
- AC Light Dimmer Module Controller Board ARDUINO RASPBERRY Compatible 50/60Hz
- Autodetect AC LINE frequency - 50Hz or 60Hz
- Compatible with any ARDUINO, RASPBERRY boards.
- AC LOAD dimming control via firing angle method. Working voltage 80...240VAC
- AC Phase Control Circuit (Dimming Circuit) / Home Automation, School Projects, Work Related Projects
DIMMING LEVEL CONTROL VIA PWM SIGNAL OR VOLTAGE LEVEL For 50Hz and 60Hz AC Lines This module is designed to control the intensity of incandescent lamps, AC LED dimmable bulbs, LED Strips, Power of heating elements and AC motor speed through a micro-controller by PWM signal or voltage level.
Device characteristics : PCB dimensions: 50mm x 75mm
Mounting holes diameter: 3.2mm
Distance between holes: vertical 68mm,
horizontal 43mm
Working voltage 80...240VAC
Current 3A
Device power supply
- 5V or 3.3V Compatible for 50Hz and 60Hz AC LINE Autodetect AC LINE frequency
- 50Hz or 60Hz PWM input signal up to 10kHz Input voltage level up to VCC (0-3.3V / 0-5V) 50HZ LED
- show detected 50Hz AC Line 60HZ LED
- show detected 60Hz AC Line Both LED flashing
- when AC Line is not detected POPWE LED
- indicate device power
On-board Snubber circuit for triac protection, when you're controlling inductive load Low voltage side and high voltage side is completely isolated
Fully compatible with any MCU, Arduino or Raspberry boards NOT appropriate to change the brightness of fluorescent lamps !!!
To control LED STRIP, diode rectifier must be connected before AC INPUT.
AC LOAD dimming control via firing angle method.
Arduino testing sketch here https://drive.google.com/file/d/0B6GJokXFb5oEdFAxVEItdWN2S1U/view
Device in action #1 - https://youtu.be/yT47lLbgLvg
Device in action #2 - https://youtu.be/IcLAhaMT4Ew

Country	USA
Binding	Tools & Home Improvement
Brand	1Channel PWM AC Pahse Dimmer
EAN	0687299661374
Label	ElectronicNuts
Manufacturer	ElectronicNuts
Model	PWM1ChKrida
MPN	EN1ChPwmDimmer
NumberOfItems	1
PartNumber	EN1ChPwmDimmer
Publisher	ElectronicNuts
Studio	ElectronicNuts
ReleaseDate	0000-00-00
