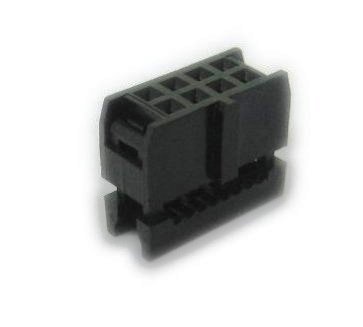

Pc Accessories 10 Pack IDC 2X4 8 Pins 2.54mm 0.1" Pitch Dual Row Socket for 1.27mm 0.05" Spacing Flat Ribbon Cable, 10-PK
Product Description
Pc Accessories 10 Pack IDC 2X4 8 Pins 2.54mm 0.1" Pitch Dual Row Socket for 1.27mm 0.05" Spacing Flat Ribbon Cable, 10-PK
- 8 PINS STANDARD 0.1" 2.54MM SOCKETS
- 2X4 IDC IDE SOCKET-RECEPTACLE 0.1" x 0.1" DUAL ROW IDC
- FEMALE CONNECTOR WITH POLARIZING CENTER BUMP & Strain Relief
- MATES WITH 0.1" (2.54mm) PITCH HEADERS, TERMINATES TO .050" 1.27mm FLAT RIBBON CABLE
- Price is 10 Sets of 8P Connectors
Price is 10-PACK
Dual-Row 0.1" Socket, IDC, 8 Position, Polarized IDC Flat Ribbon crimp Connectors.
These connectors mate with any standard 0.1" spaced dual-row pin headers.
The insulation displacement (IDC) contacts on these connectors allow them to be quickly and easily crimped onto flat ribbon cable. These are female sockets designed to connect to male pin headers. These connectors have a polarizing tab in the middle to ensure correct orientation when used with a shrouded header ("box header").
Detailed Description:
NUMBER OF PINS: 8
2X4 IDC SOCKET-RECEPTACLE 0.1" x 0.1" DUAL ROW IDC FEMALE CONNECTOR WITH POLARIZING CENTER BUMP MATES WITH .1" (2.54mm) PITCH HEADERS
TERMINATES TO .050" FLAT RIBBON CABLE
Includes rear brackets STRAIN RELIEF to secure the wiring.
Technical Specifications
