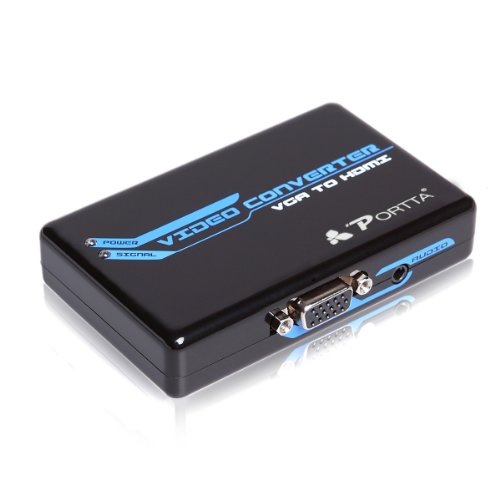

Portta VGA + Stereo Audio L/R to HDMI Converter v1.3 Support

Portta VGA + Stereo Audio L/R to HDMI Converter v1.3 Support 1080p LPCM
- VGA to HDMI Converter box converts PC VGA and audio to HDMI, allowing connection of PC to 1080p HDTV. Input: VGA and Stereo Audio Output: HDMI,
- HDCP compliant; PC VGA Resolution: 1920 X 1080at60Hz, 1360 X 768at60Hz, 1280 X1024 at60Hz, 1024 X 768 at60Hz, 1280 X 720 at60Hz, 1280 X 768 at60Hz, 800 X 600 at60Hz, 640 X 480 at60Hz, 720 X 400 at85Hz.
- HDMI Transmission Rate: 5Gbps Support 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth. Support 8bit per channel (24bit all channel) deep color. Support uncompressed 2 channel audio such as LPCM
1.0 INTRODUCTION

This kind of the Converter is a VGA video converter. It converts VGA input into HDMI to allowPC users to show their image not only on the PC monitor, but could also on TV, to have a large display. The conversion is along with the audio.

2.0 SPECIFICATIONS

Signal Inputs:VGA Signal

Input Video Signal:0.5 -1.0 volts p-p

Output Video:HDMI Signal

DTV/HDTV:480i/576i/480p/576p/720p/1080i/1080P

Video Amplifier Bandwidth: 1.65Gpbs/165MHz

Vertical Frequency Range: 50/60Hz

Interlaced(50&60Hz):480i,576i,1080i

Progressive(50&60Hz):480p,576p,720p,1080p

Operating Temperature:0â„ƒ to +70â„ƒ

Operating Humidity:10% to 85 % RH (no condensation)

Storage Temperature: -10â„ƒ to +80â„ƒ

Storage Humidity: 5% to 90 % RH (no condensation)

Power Supply:5V DC

Power consumption (Max): 5W

Converter Unit Cert.:FCC,CE,

Power Supply Cet.:CE,FCC

3.0 PACKAGE CONTENTS

1) Main unit x1
2) 5V DC Power Supply x1
3) User Manual(English Version) x1

Country	USA
Brand	Portta
Manufacturer	Portta Electronics & Technology Limited
Binding	Electronics
PartNumber	N3CVTVH
Model	PETVH
Warranty	5 Years
Color	No
Height	0.8
Length	3.7
Weight	0.145
Width	2.4
Size	VGA Converter
ReleaseDate	0000-00-00

Portta VGA + Stereo Audio L/R to HDMI Converter v1.3 Support 1080p LPCM
