Power Transformer 12.6V-3A
Product Description
Power Transformer 12.6V-3A
- 12.6 Volt AC Power Transformer @3000 mA With Center Tap
- Output voltage given is across the entire secondary
- Center tapped lead provides 1/2 that voltage from the center to either lead wire
- Classic style with metal bracket with mounting holes.
- Mounting hole center to center: 3.20"

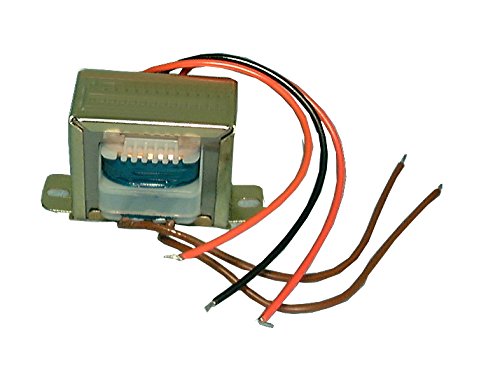

12.6 Volt AC Power Transformer @3000 mA With Center Tap. Output voltage given is across the entire secondary. Center tapped lead provides 1/2 that voltage from the center to either lead wire. Classic style with metal bracket with mounting holes. Specifications: Input Voltage: 120 VAC; Related Voltage: 12.6 VAC; Rated Current: 3000 mA; Secondary VAC with no load: 15.1V; Resistive Load: 4.4 Ohms; Output VAC with load: 13.78; Mounting hole center to center: 3.20"; Height: 2.28" ; Width: 2.79"; Depth: 2.39". Primary wires are black, secondary are red with green insulation on the center tap.
Technical Specifications
