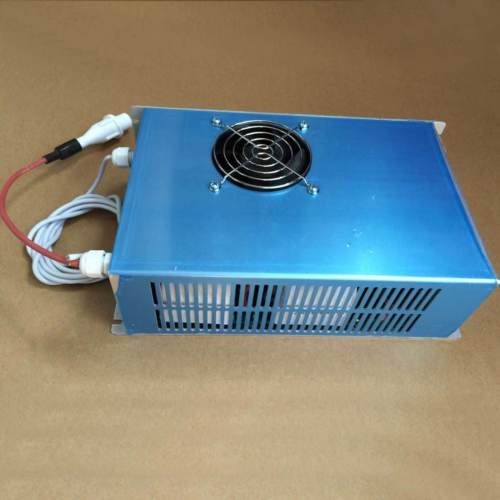

Power supply for RECI CO2 Laser Tube 80W -90W Z2 W2S2 DY10 110V

• Model : DY10
• Input Voltage: 100V
• AC frequency: 47-440HZ
• Max Input power: 440W
• Max Input current: 3A
• Max output voltage: DC 35KV
• Max output current: DC 28mA
• Efficiency greater than or equal to 90%(Full load)
• MTBF greater than or equal to 10000 Hours
• Response speed less than or equal to 1ms(Time from the TTL Signal is given to the output current up to 90% pre-setting current)
• Withstand Voltage: Input-Output, Input-Enclosure: AC1500V 10mA 60S, Output cathode is connected with enclosure.
• Environment Operating temperature:(-10-40)degree
• Celsius,Relative humidity: less than or equal to 90%
• Cooling: Forced air cooling(fan cooling)

• TH: Input Signal, Switch Light Control,High Level(greater than or equal to 3V)-Bright dipping,Low Level(less than or equal to 0.3V)-No Light Dipping
• TL: Input Signal, Switch Light Control.High Level-No light Dipping,Low Level(less than or equal to 0.3V)-Bright Dipping
• 3WP*1: Input Signal, Switch Light Control,High Level(greater than or equal to 3V)- No light Dipping,Low Level(less than or equal to 0.3V)-Bright Dipping
• G :Signal Ground, The foot must connected with laser machine's enclosure and ground properly.
• IN*2 :Input Signal, Laser Power supply control terminal can use 0-5V Analog Signal Control,also can use 5V PWM Signal to Control 6 5V Output Power 5V,Max output Current 20mA
