NOTE: This device requires a power supply matching the power rating of the load it's connected to. Check if you have a 12 or 24 VDC LED strip before installing the Qubino device. Do NOT connect the Qubino RGBW dimmer to 110 VAC.
SPECIFICATIONS:

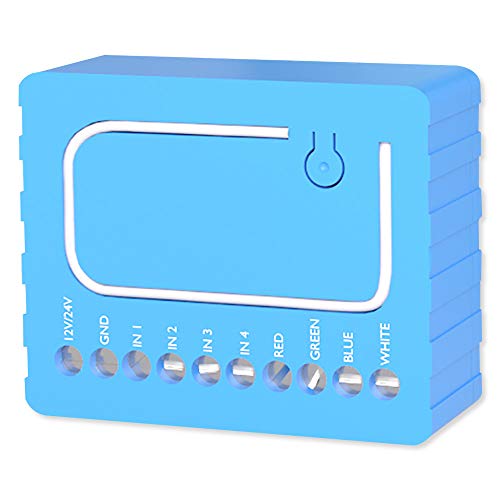

Model Number: ZMNHWD3
Z-Wave Signal Frequency: 908.42 MHz
Power: 12-24 VDC
Maximum Load: 8 A for single channel, 13 A total output (max 3.25 A per each RGBW channel recommended)
Power Consumption: 0.5 W at 12V / 0.72 W at 24V
Z-Wave Range: Up to 130 feet line of sight
Operating Temperature: 32-104° F
Installation and Use: Indoor only
Dimensions: 1.77" x 1.25" x 0.57"
Weight: 1 oz
COMPATIBLE HUBS: Do NOT buy if your controller is not listed below. Contact Seller first.
Domoticz
Fibaro Home Center Lite
Home Assistant
HomeSeer
Samsung SmartThings Hub with custom device handler - Contact Seller for Instructions
