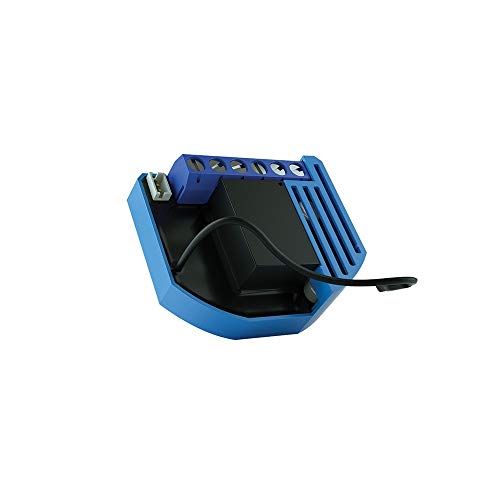

Qubino Z-Wave Plus 1 Relay Switch and Energy Monitor ZMNHAD3. Works with Wink, SmartThings, Vera, and More. Compact Design, the Smallest in the U.S.
Product Description
Qubino Z-Wave Plus 1 Relay Switch and Energy Monitor ZMNHAD3. Works with Wink, SmartThings, Vera, and More. Compact Design, the Smallest in the U.S.
Power supply 110 - 230 VAC ±10% 50/60Hz, (24-30 VDC)
Rated load current of AC output (resistive load)* 1 X 10A / 230 VAC
Rated load current of DC output (resistive load) 1 X 10A / 30 VDC
Output circuit power of AC output (resistive load) 1200 W (120 VAC) Output circuit power of DC output (resistive load) 240 W (24 VDC)
Power measurement accuracy P = 5-50 W, +/-3 W P > 50 W, +/-3%
Digital temperature sensor range (sensor must be ordered separately) -50° ~ +125°C
Operation temperature -10° ~ +40°C Distance up to 30 m indoors Dimensions (WxHxD) 41.8 x 36.8 x 15.4 mm (packaging) (79x52x22 mm) Weight (including packaging) 28 g (34 g) Electricity consumption 0.4 W For installation in boxes Ø ≥ 60 mm or 2M, depth ≥ 60 mm Switching Relay * In the case of loads other than resistive, pay attention to the value of cosφ and if necessary use a load lower than the rated load. Max current for cosφ = 0.4 is 3 A at 250 VAC, 3 A at 24 VDC L/R = 7 ms.
