RAINPAL Brass Rain Barrel Spigot with Bulkhead Fitting (RBS015

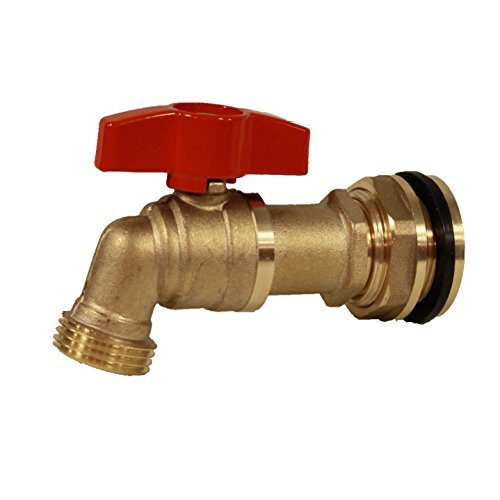

RAINPAL Brass Rain Barrel Spigot with Bulkhead Fitting (RBS015 5GPM)
- NOT Lead Free Compliant, Designed for Irrigation with Rain Barrel, NOT for Potable Water. Please purchase model: RBS022LF for potable water
- Heavy Duty 3.2 oz Solid Brass Bulkhead Fitting, 3/4 inch NPT female threaded all the way, install spigot on either end. Heavy Duty 9.3 oz 3/4 inch Quarter Turn Solid Brass Ball Valve with Garden Hose Hook Up
- Large 15mm Flow Opening, Great Flow Rate at Approx. 12 sec/gal or 5GPM, Tested with 2 ft Water.
- Bulkhead Fitting need 1.25 inch diameter hole to install. Fit up to 0.4 inch thickness wall(Works great for 55 gallon used plastic drum barrels on craigslist, these barrels usually have wall thickness of 0.1-0.2 inch)
- Left Handed Nut(Reverse Threaded) for easy installation. Only LIGHTLY tighten the spigot for easy un-installation.
California prop 65 warning: This product contains chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hand after use.
Installation Instruction:
Tools needed: Pipe Wrench or Channellock Pliers, Power Drill, 1-1/4 inch Hole Saw, PTFE Thread Tape
Drill 1.25 inch hole on rain barrel, Center the hole 2-3 inch above the bottom(use eye protection when operation power tool)
Drop the bulkhead fitting male piece with gasket in to the barrel
Roll the barrel, pick up the fitting from outside
Install bulkhead nut and tighten
Wrap about 5 rounds of tape on the spigot thread Insert the spigot and tighten
Country USA
Binding Kitchen
EAN 0681441045371
Label RAINPAL
Manufacturer RAINPAL
Model RBS
MPN 43237-2
PartNumber 43237-2
Publisher RAINPAL
Size RBS015 5GPM
Studio RAINPAL
ReleaseDate 0000-00-00

Country	USA
Binding	Kitchen
EAN	0681441045371
Label	RAINPAL
Manufacturer	RAINPAL
Model	RBS
MPN	43237-2
PartNumber	43237-2
Publisher	RAINPAL
Size	RBS015 5GPM
Studio	RAINPAL
ReleaseDate	0000-00-00
