RATTMMOTOR Digital Height Pre-Setter, IP65 Digital CNC Magnetic Z-Axis Zero Tool Setter LCD Display CNC Machining Z Axis Pre Setting Device Positioning Tool for CNC Lathe Milling Machine

RATTMMOTOR Digital Height Pre-Setter, IP65 Digital CNC Magnetic Z-Axis Zero Tool Setter LCD Display CNC Machining Z Axis Pre Setting Device Positioning Tool for CNC Lathe Milling Machine

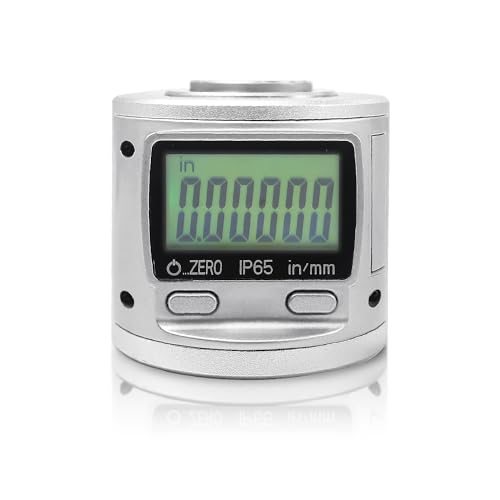

• 【Setter introduction】LED screen digital display Z weekly setter; Accuracy display value 0.001mm; Large panel digital display with light; IP65 waterproof design; Auto power off after 5 minutes of no operation; Return to the "0" position light prompts; Inductive measurement system.
• 【Parameter】Inductive measurement system; Response speed: 3.2m/s; Protection grade: IP65; Light Indicating at “0”; Range: 0-3mm; Resolution: 0.001mm/0.00005′′; Repeatability: ±0.002mm/±0.0001′′; Auto power-off, when no use for 5 minutes; Power on when the mesuring face moving.
• 【Features】Step design with large measuring surface; Magnetic design, non-slip, easy to fix, improve work efficiency; Small internal spring force to avoid damage to small knives.
• 【Note】The bottom of the setter contains magnet adsorption device, the bottom screws usually do not remove, height tolerance value ± 0.05mm, can be adsorbed plane or side use.
• 【Product Use】Can be used for high length measurement correction of metal/non-metal (plastic/stencil/glass, etc.).
