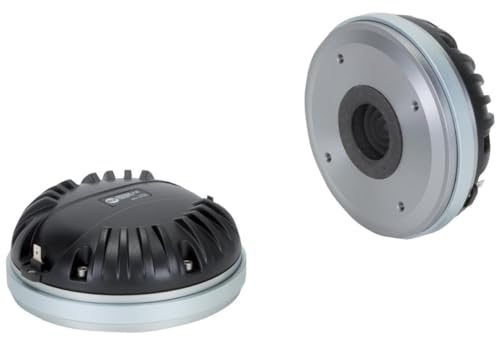

RCF ND9501.4 Neo Mid High Driver 4-Inch Titanium Diaphragm

RCF ND9501.4 Neo Mid High Driver 4-Inch Titanium Diaphragm 1.4-Inch Exit Throat/Pure Titanium Compression Driver 140 Watts Rms 280 Watts Peak 8-Ohm Precision Transducers Pro Audio Sound Speaker
- GENERAL || Brand : RCF || Model Number : 15129038 | ND950 1.4 || UPC : 728990193860 || FEATURES || 4-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver || 280W continuous program power handling || Frequency range: 500Hz - 20kHz || 4-slot optimized geometry phase plug || Titanium diaphragm, Polyimide surround || Copper inductance ring for extended response || The minimum size 4"" driver available || Nedymium magnet assembly ||
- SPECIFICATIONS || Exit Throat Diameter : 1.4 inch / 36 mm || Related Impedance : 8 ohm || Program Power (watt) : 280 W || Power handling capacity : 140 W || Sensitivity : 110 dB || Frequency range : 500 - 20000 Hz || Suspension Design : Flat || Minimum Impedance (ohm) : 8.50 ohm || Voice Coil Diameter : 4.0 inch / 102 mm || Voice Coil Former Design : Direct Drive Kapton || Number of layers : 1 || Kind of layers : inside/outside || Flux Density : 2.0 T || Phase Plug Design : 4 slot ||
- PARAMETERS || Bl factor (Bl) (T x m) : 17.60 T x m || MOUNTING INFORMATION || Overall diameter : 146 mm / 5.75 inch || Overall height : 60 mm / 2.36 inch || Mounting : 4 x 6 mm threaded holes at 90° || STANDARD COMPLIANCE || Safety agency : CE compliant || SIZE || Weight : 3.5 kg / 7.72 lbs || SHIPPING INFORMATION || Package Height : 79 mm / 3.11 inch || Package Width : 169 mm / 6.65 inch || Package Depth : 171 mm / 6.73 inch || Package Weight : 3.7 kg / 8.16 lbs ||
- The ND950 1.4 is a ultra compact size, high performance, high power handling 4.0-inch diaphragm compression driver with a 1.4 inch exit throat. The high power neodymium magnet guarantee the perfect control of the dome assembly’s moving mass. This leads to higher efficiency, better transient response and diminishes high frequency distortion modes. ||
- A thin copper ring is precision pressed on to the pole piece in order to modify and lower the inductance characteristics of the magnetic circuit and voice coil providing a controlled extension of the acoustic frequency response. The ND950 1.4 features a 0.05 mm thick pure titanium dome in combination with a high strength Mylar suspension.
Country USA
Brand RCF-USA
Manufacturer RCF
Binding Electronics
ItemPartNumber ND9501.4
Model ND9501.4
ReleaseDate 2024-06-03
UnitCount 1
UPCs 728990193860
EANs 0728990193860

Country	USA
Brand	RCF-USA
Manufacturer	RCF
Binding	Electronics
ItemPartNumber	ND9501.4
Model	ND9501.4
ReleaseDate	2024-06-03
UnitCount	1
UPCs	728990193860
EANs	0728990193860

RCF ND9501.4 Neo Mid High Driver 4-Inch Titanium Diaphragm 1.4-Inch Exit Throat/Pure Titanium Compression Driver 140 Watts Rms 280 Watts Peak 8-Ohm Precision Transducers Pro Audio Sound Speaker
